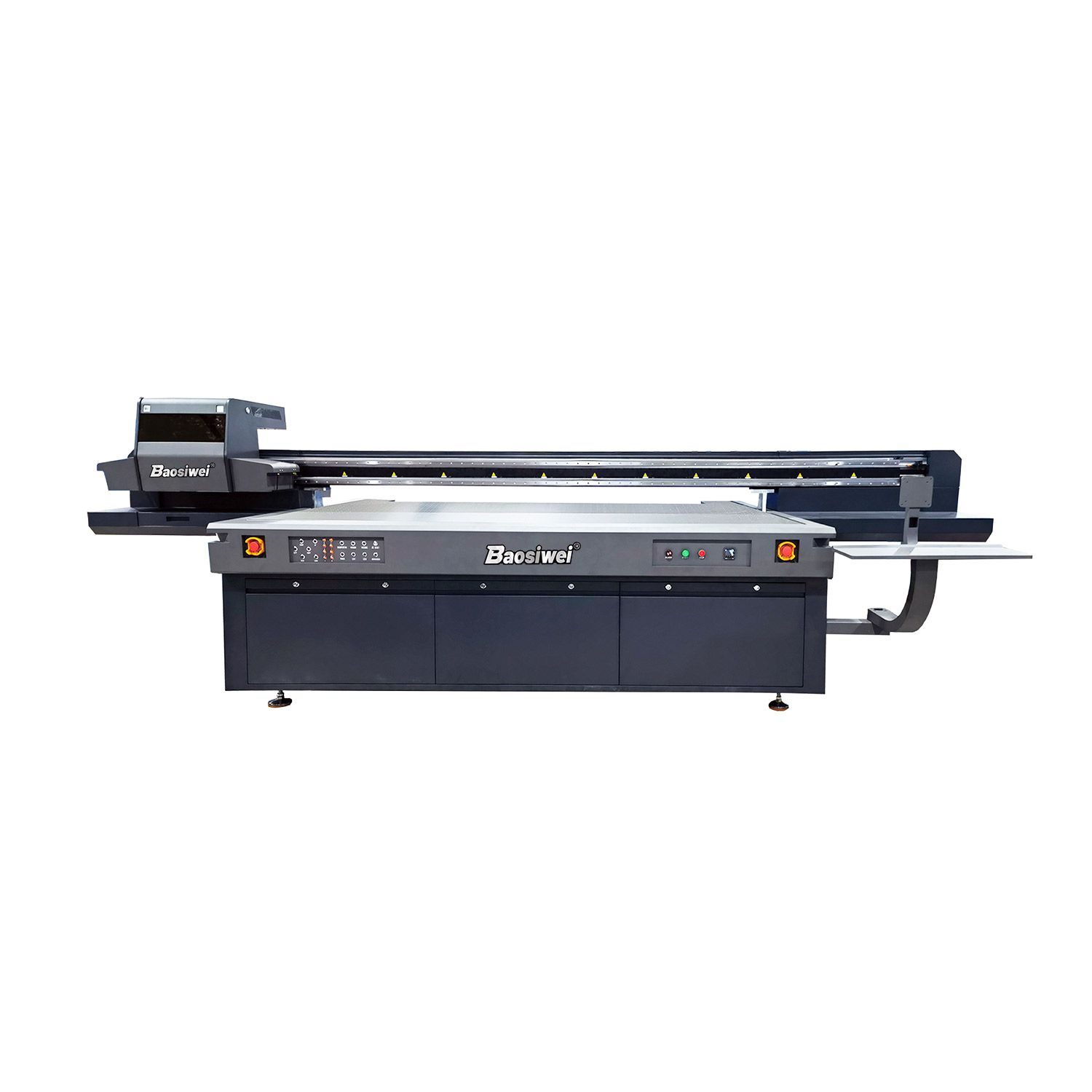

Baosiwei New Generation Visual Positioning UV Flatbed Printer
- Category: UV Flatbed Printer
- SKU: JW-2513G6
- Printing Size : 2500× 1250 mm ± 2 mm
- Application Materials: Glass, acrylic, metal panels, wood panels, tiles, PVC panels, corrugated panels, plastics, etc.
- Ricoh industrial G6 / G5 printheads.
- Designed with the complete machine for industrial stability.
- Cannon-style Visual Position System
- Produce embossed 3D effects in one process.
- Quick response pros-view service.
Product Details
Payment & Shipping Terms
3D Embossed Canvas Wall Art Printed with Baosiwei UV Flatbed Printer
Custom Metal Badges Printed with Baosiwei UV Flatbed Printer
Acrylic Anime Stand Printed with Baosiwei Visual Positioning UV Flatbed Printer Baosiwei JW-2513 Industrial UV Flatbed Printer Scan, RlP and Print Software Three-in-one Visual Positioning System
Industrial-Grade Ricoh Printheads
Optional 2-8 industrial-grade Ricoh G5 or G6 printheads, fast printing speed, high precision, and more stable to achieve simultaneous printing of white, color, and varnish, which further improves production capacity and precision.
Simultaneous Printing of Color, White and Varnish
Stronger embossing and 3D effects to create realistic textures and tactile sensations, efficient output with higher productivity.
Cannon-Style Visual Positioning System
Head-type scanning camera, independent light source, no shadows, high precision from the fisheye lens, easy-to-operate software.
Strong Suction Platform with Tapered Holes
The suction area and air volume can be controlled and adjusted by zones, and both hard and soft materials can be printed. Higher suction power for smoother printing of small objects.
FREE Printed Sample
We cordially invite you to request complimentary print samples utilizing your preferred media, please do not hesitate to contact us [email protected]
Related Products
Baosiwei A3 Multifunctional UV Flatbed Printer Small

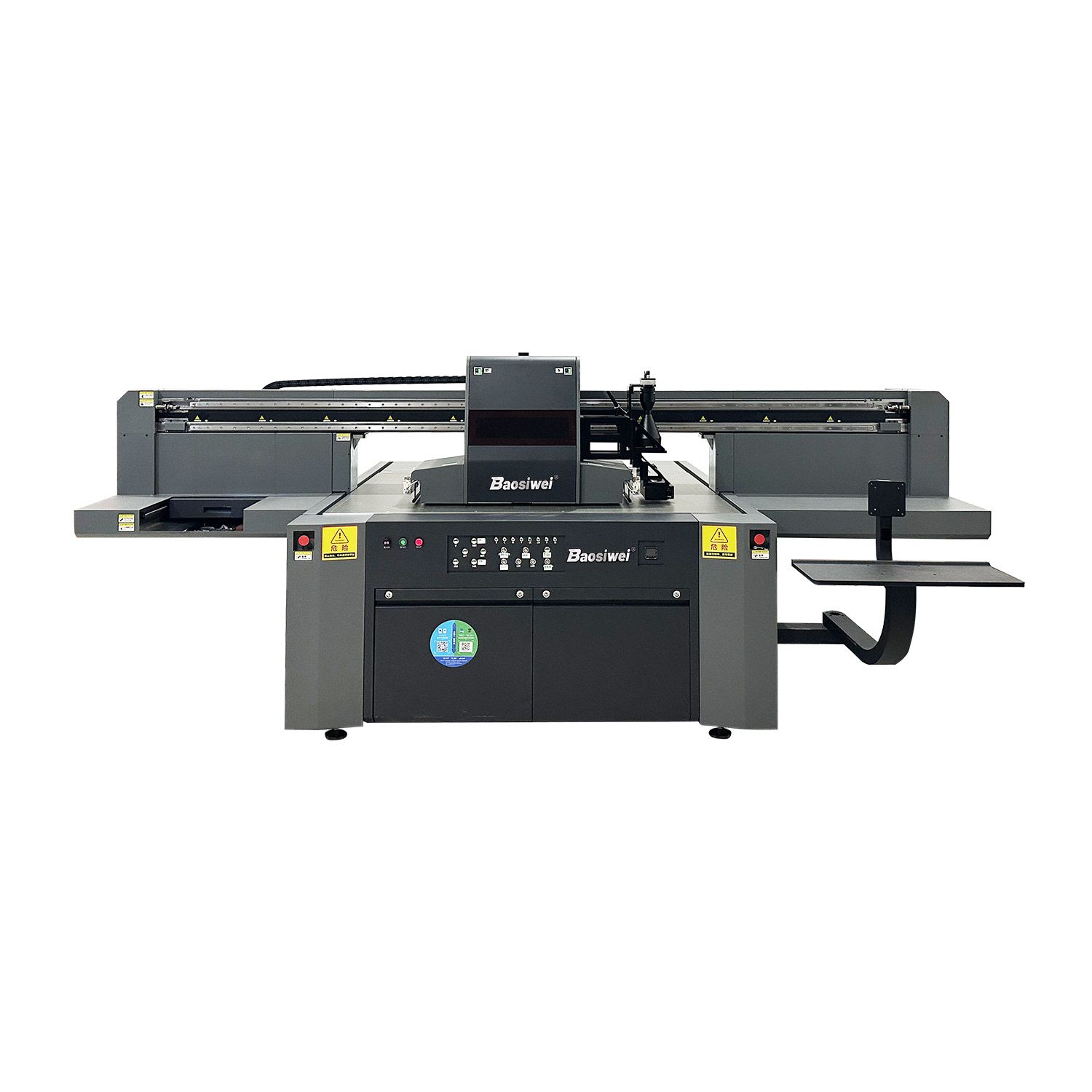

Baosiwei New Generation Visual Positioning UV Flatbed-Printer 1.6mx1.2m
Baosiwei 2513 UV Flatbed Printer | Large Format Industrial Digital Printing Machine 2.5m x 1.3m

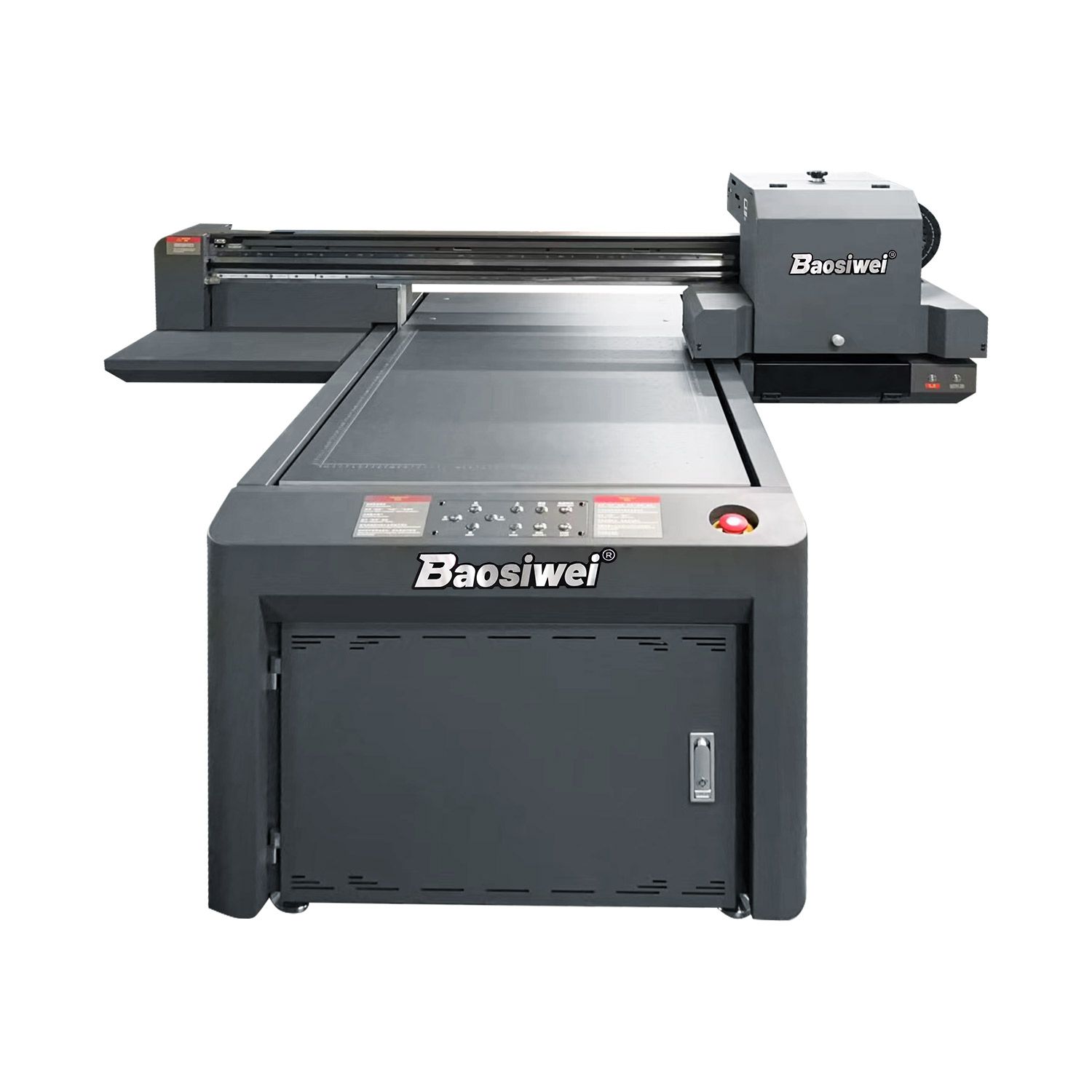

Baosiwei 6090 UV Flatbed Printer – High-Precision & Industrial-Grade Printing for Small Items & Signage Specifications
| Model | JW-2513M / JW-2513G6 |
| Print head | Ricoh G5 / G6 |
| Numbers of print heads | 2-8 |
| Printing speed | Standard mode (Single row of printheads): 30 ㎡/h |
| Production mode (Single row of printheads): 22 ㎡/h | |
| High resolution mode (Single row of printheads): 18 ㎡/h | |
| Printing size (W x D) | 2500× 1250 mm ± 2 mm |
| Media weight | 300KG |
| Media type | Glass, ceramic tiles, metal plates, acrylic, wooden boards, PVC boards, coated paper, etc. |
| Media thickness | 0.1-90mm |
| Ink type | Special UV ink for Ricoh printheads |
| lnk configuration | Choices of CMYK+Lc+Lm+W,CMYK+W, CMYK+Lc+Lm+W+V, and CMYK+W+V |
| Ink capacity | 1Kg / bottle |
| Connectivity | Gigabit |
| Environment | Self-contained, clean, low-dust, well-ventilated |
| Temperature : 18-30°C;Humidity: 30-70%RH | |
| Power requirements | AC220V (±5%),50HZ/60HZ |
| Power consumption | 6,800W |
| Machine dimensions (W x D x H) | 4,640 ×2,125 × 1,460 mm (±10 mm) |
| Machine weight | 1,300 Kg |
| Shipping dimensions (W x D x H) | 4,880× 2,260× 1,850 mm |
| Shipping weight | 1,700kg |
| Optional Visual Positioning System available | Cannon-style Visual Position System |
| RIP software | Standard: RIIN; Optional: PrintFactory / |
| Uitraprint /Onyx / PhotoPrint | |
| Print resolution | 960 x 900 dpi; 960 × 1200 dpi; 720 × 2400 dpi |
| Computer requirements | Operating system: Windows 7/10(64-bit);Procssor: Intel Core i7;Memory: 16 GB; Hard-disk: 1TB or above SSD drive; USB3.0port. |
Company Profile
Marketed under our own brand Baosiwei, Pros-View is a leading manufacturer specializing in manufacturing, research and development, production, sales, and services. The company was established in 1996 with headquarters in Guangzhou, China. Since then, we have successfully expanded our reach, covering 18 cities nationwide, and established 2 subsidiary companies overseas. We are also an authorized dealer for the international brands such as ROLAND, RICOH Latex, and others.
Our continuous success stems from our unwavering commitment to solution development. Collaborating closely with various industries, we tailor digital printing solutions to meet their specific needs. At the heart of our development lies our Solution Development Center, spanning 500 sq meter and staffed by a dedicated team of over 10 specialists. Over the years, we have successfully developed and implemented more than 1800 innovative solutions.
In addition, Baosiwei partnered with X-Rite to establish the X-Rite Certified Color Lab within our Solution Development Center. This collaborative effort means that our lab meets the rigorous standards and requirements set by X-Rite. Furthermore, our specialists have undergone X-Rite's comprehensive color management training, further enhancing our expertise and capabilities in color science.
We are committed to delivering exceptional after-sales service and support, aiming to minimize machine downtime for our customers. Through our exclusive Pros-View Service app, customers can easily initiate video calls with our support team at the press of a button on their mobile devices. At the same time, our state-of-the-art back-end system enables seamless tracking and resource allocation for efficient resolution of service calls.
Baosiwei remains steadfast in our dedication to providing unparalleled services and technical support to our valued customers. We focus on offering environmentally friendly and high-quality digital printing equipment, as well as comprehensive one-stop digital printing solutions. Our very existence is to bring value to customers.
