Baosiwei 新一代视觉定位 UV 平板打印机，工业级 2.5m × 1.3m UV 打印机，搭载 Ricoh G6/G5 喷头，实现高精度大幅面打印
Baosiwei 新一代视觉定位 UV 平板打印机，工业级 2.5m × 1.3m UV 打印机，搭载 Ricoh G6/G5 喷头，实现高精度大幅面打印
Baosiwei 2.5m × 1.3m 视觉定位 UV 平板打印机侧视图，配备炮筒式视觉定位系统，可自动对位，实现精确图像打印
Baosiwei 2.5m × 1.3m 视觉定位 UV 平板打印机背视图，具备工业级稳定性，高速运行能力，并支持多层打印，实现 3D 浮雕效果

宝斯威新一代视觉定位uv平板打印机

理光G6 uv平板打印机
大幅面uv平板打印机
视觉定位uv平板打印机
  • 类别: UV平板打印机
  • SKU: JW-2513G6
  • 打印宽幅: 2500× 1250 mm ± 2 mm
  • 应用材料: 玻璃、亚克力、金属板、木板、瓷砖、PVC板、波纹板、塑料等
  • 理光工业 G6/G5 打印头。
  • 采用整机设计，保证工业生产稳定性。
  • 炮式视觉定位系统
  • 只需一个工序即可产生浮雕 3D 效果。
  • 快速响应的宝斯威服务。

产品属性

喷头类型
2-8个理光 G5 / G6
打印宽幅
2500× 1250 mm ± 2 mm
打印速度
最高可达96㎡/h
墨水类型
理光打印头专用UV墨水
墨水配置
CMYK | Lc | Lm | W，CMYK | W,CMYK | Lc | Lm | W | V,CMYK | W | V自由组合

付款和运输条款

最小订购量
1 套
宝斯威UV平板打印机打印的3D浮雕帆布墙画 宝斯威UV平板打印机打印的3D浮雕帆布墙画
宝斯威UV平板打印机打印的定制金属徽章 宝斯威UV平板打印机打印的定制金属徽章
宝斯威视觉定位UV平板打印机打印的动漫亚克力立牌 宝斯威视觉定位UV平板打印机打印的动漫亚克力立牌

宝斯威工业级UV平板机 扫描、RIP、输出软件 三合一视觉定位系统


工业级理光喷头

  • 配置工业级理光G6/G5喷头，产能可达30平方每小时，大幅提升生产效率
  • 速度与精度的完美结合，确保高品质图像稳定输出。


工业级稳定设计

  • 工业级机电系统，布局整齐，功能明确，日常维护更加简便，
  • 工业级机架，确保连续生产，稳定性更高。


一次成型，浮雕3D效果

白、彩、光油同步打印，增强图案的浮雕3D效果，打印出的图案更加细腻、生动呈现更高档次的质感。


精准打印

  • 炮筒式扫描视觉定位系统，快速扫描精准定位，确保图像精准还原。
  • 配备锥孔吸风平台，吸力更强，无论小物件或大物件打印，都能实现稳固吸附。


快速响应的景望服务

线上服务平台，一对一快速响应，为用户提供高效、专业的技术服务，快速解决生产中遇到的故障并及时恢复生产。

相关产品

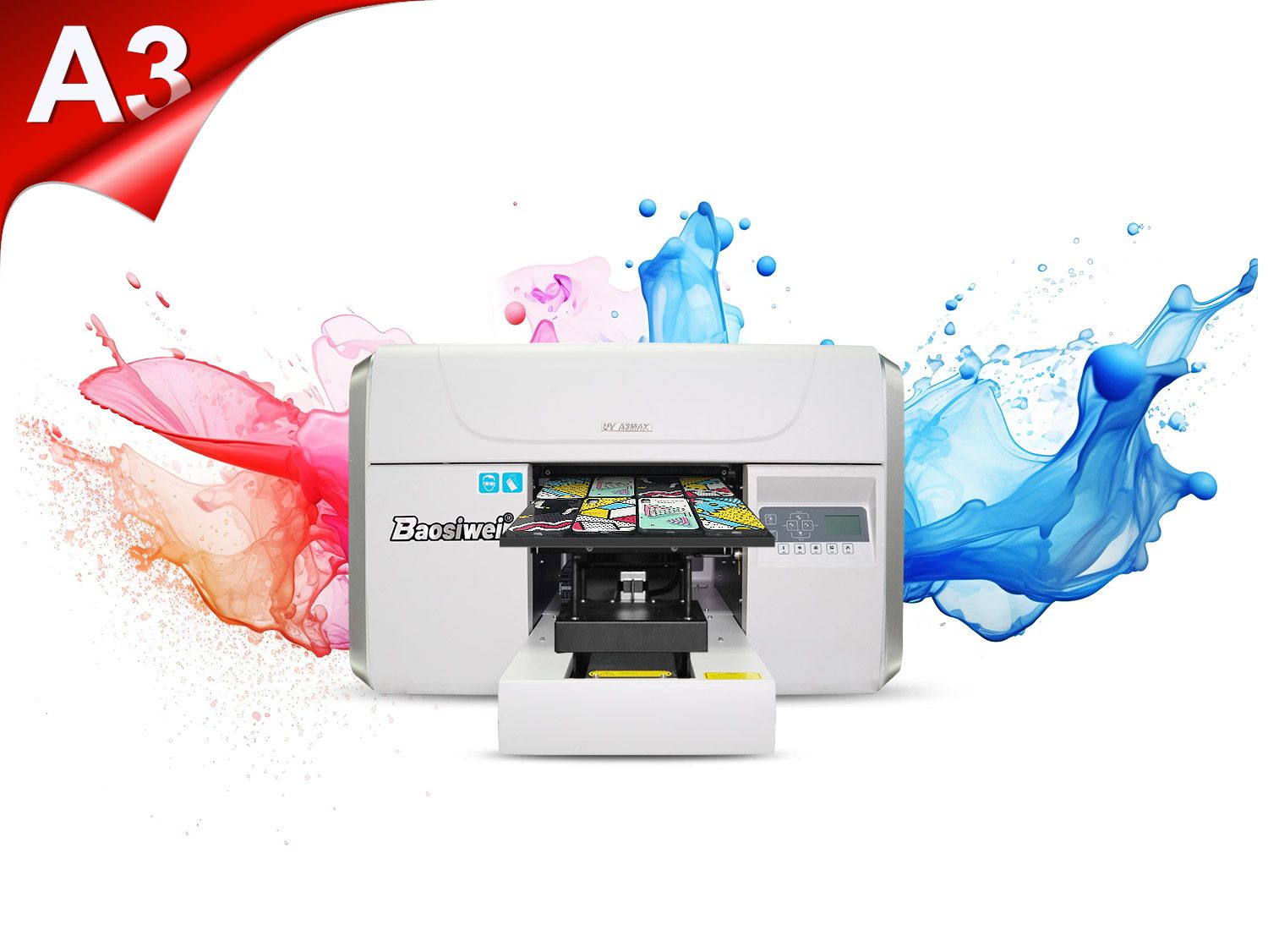

Baosiwei A3 UV 平板打印机正面视图 – 具有开放式打印平台的紧凑型A3 UV平板打印机，适用于高精度打印各种材料 宝斯威A3多功能UV平板打印机
Baosiwei 1612视觉定位UV平板打印机 – 高精度工业UV打印机，配备先进视觉定位，实现精准多材料打印 宝斯威新一代1612视觉定位uv平板打印机
Baosiwei 2513 UV平板打印机 – 工业级大幅面高精度打印机 宝斯威2513UV平板打印机 | 大幅面工业型数码打印机 2.5米 × 1.3米
Baosiwei 6090 UV平板打印机 – 高精度直喷打印，适用于工业级应用 宝斯威6090uv平板打印机——高精度、工业级、小物件打印、标牌打印

规格参数


ModelJW-2513M / JW-2513G6
Print headRicoh G5 / G6
Numbers of print heads2-8
Printing speedStandard mode (Single row of printheads): 30 ㎡/h
Production mode (Single row of printheads): 22 ㎡/h
High resolution mode (Single row of printheads): 18 ㎡/h
Printing size (W x D)2500× 1250 mm ± 2 mm
Media weight300KG
Media typeGlass, ceramic tiles, metal plates, acrylic, wooden boards, PVC boards, coated paper, etc.
Media thickness0.1-90mm
Ink typeSpecial UV ink for Ricoh printheads
lnk configurationChoices of CMYK+Lc+Lm+W,CMYK+W, CMYK+Lc+Lm+W+V, and CMYK+W+V
Ink capacity1Kg / bottle
ConnectivityGigabit
EnvironmentSelf-contained, clean, low-dust, well-ventilated
Temperature : 18-30°C;Humidity: 30-70%RH
Power requirementsAC220V (±5%),50HZ/60HZ
Power consumption6,800W
Machine dimensions (W x D x H)4,640 ×2,125 × 1,460 mm (±10 mm)
Machine weight1,300 Kg
Shipping dimensions (W x D x H)4,880× 2,260× 1,850 mm
Shipping weight1,700kg
Optional Visual Positioning System availableCannon-style Visual Position System
RIP softwareStandard: RIIN ; Optional: PrintFactory /
Uitraprint /Onyx / PhotoPrint
Print resolution960 x 900 dpi; 960 × 1200 dpi; 720 × 2400 dpi
Computer requirementsOperating system: Windows 7/10(64-bit);Procssor: Intel Core i7;Memory: 16 GB; Hard-disk: 1TB or above SSD drive; USB3.0port.
