Baosiwei New Generation Visual Positioning UV Flatbed-Printer 1.6mx1.2m
- Category: UV Flatbed Printer
- SKU: JW-1612
- Print Width: 1600mm x 1200mm
- Application Materials: Glass, ceramic tiles, metal plates,acrylic, wooden boards, PVC boards,coated paper, etc.
- Ricoh industrial G6 / G5 printheads.
- Designed with the complete machinefor industrial stability.
- Cannon-style Visual Position System
- Produce embossed 3D effects in one process.
- Quick response pros-view service.
Product Details
Payment & Shipping Terms

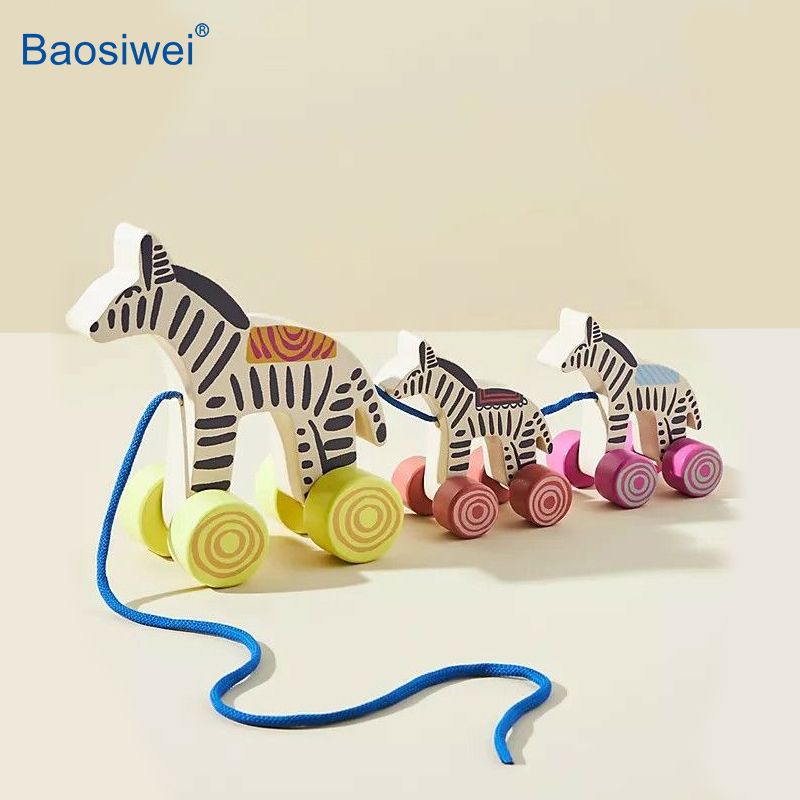

Baosiwei visual positioning UV flatbed printer delivers precise and vivid prints on wooden toys, eliminating the need for manual layout with instant scanning and printing

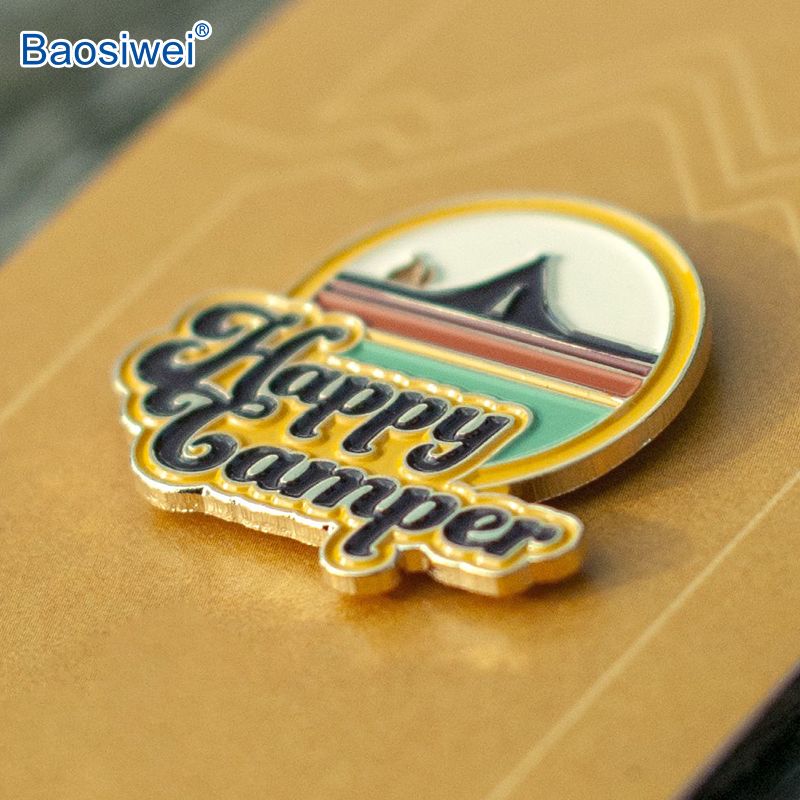

High-precision UV-printed badge with vibrant colors and sharp details, showcasing the accuracy of Baosiwei visual positioning UV flatbed printer

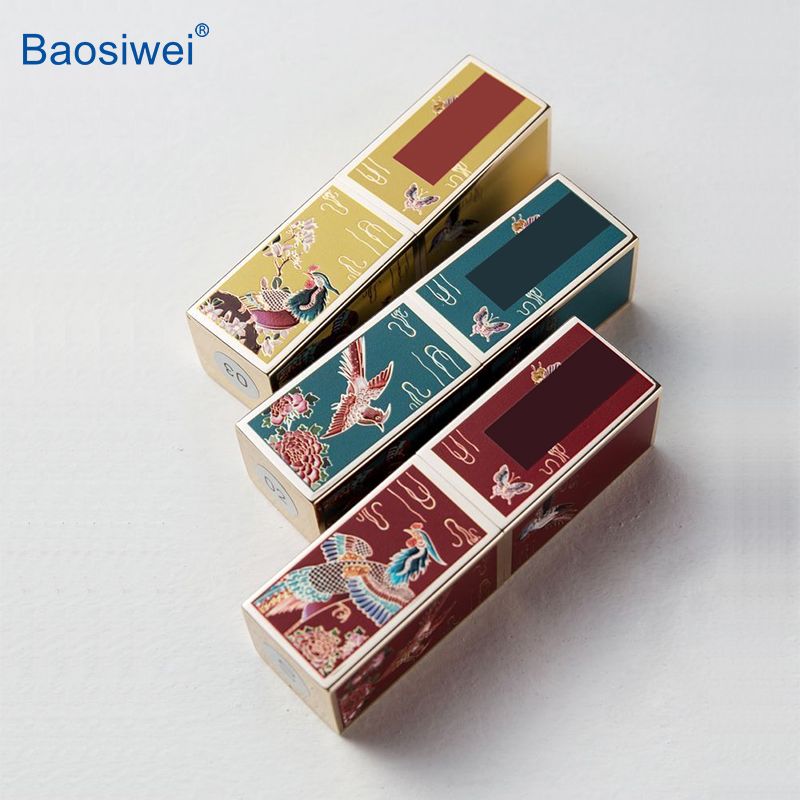

Exquisite UV-printed lipstick cases with vibrant colors and intricate details, produced using Baosiwei visual positioning UV flatbed printer without the need for manual layout Baosiwei JW-1612 Industrial UV Flatbed Printer
Scan, RIP, and Print — Integrated with a Three-in-One Visual Positioning System
Industrial-Grade Ricoh Printheads
Configured with 2 to 9 industrial-grade Ricoh G5 or G6 printheads, this printer supports high-speed, high-precision output. It enables simultaneous printing of color, white, and varnish layers, delivering improved production capacity, superior image depth, and consistent quality.
Simultaneous Color, White, and Varnish Printing
Achieve stronger 3D effects and tactile textures in one pass. This combination enhances embossing effects and accelerates printing speed, making it ideal for premium product applications and high-efficiency production.
Cannon-Style Visual Positioning System
Features a scanning camera mounted on the printhead, with a built-in independent light source and fisheye lens to eliminate shadows. Combined with easy-to-operate positioning software, this system delivers precise image alignment and accurate positioning for complex prints.
High-Power Vacuum Platform with Zoned Control
The vacuum table uses a tapered-hole design, supporting strong suction for both rigid and flexible materials. The suction zone can be adjusted independently to match various object sizes and shapes, ensuring smooth and stable printing of small, lightweight items.
Free Printed Sample Available
We welcome you to request a complimentary print sample using your chosen materials.
To request a sample or learn more about this machine, please contact us at [email protected]
Related Products
Baosiwei New Generation Visual Positioning UV Flatbed Printer
Baosiwei A3 Multifunctional UV Flatbed Printer Small
Baosiwei 2513 UV Flatbed Printer | Large Format Industrial Digital Printing Machine 2.5m x 1.3m
Baosiwei 6090 UV Flatbed Printer – High-Precision & Industrial-Grade Printing for Small Items & Signage Specifications
| Model | JW-1612 |
| Print head | Ricoh G5 / G6 |
| Numbers of print heads | 2月9日 |
| Printing speed | Standard mode (Single row of printheads): 27 ㎡/h |
| Production mode (Single row of printheads): 19 ㎡/h | |
| High resolution mode (Single row of printheads): 16 ㎡/h | |
| Printing size (W x D) | 1600 x 1200 mm |
| Media weight | 300KG |
| Media type | Glass, ceramic tiles, metal plates, acrylic, wooden boards, PVC boards, coated paper, etc. |
| Media thickness | 0.1-90mm |
| Ink type | Special UV ink for Ricoh printheads |
| lnk configuration | Choices of CMYK+Lc+Lm+W,CMYK+W, CMYK+Lc+Lm+W+V, and CMYK+W+V |
| Ink capacity | 1Kg / bottle |
| Connectivity | Gigabit |
| Environment | Self-contained, clean, low-dust, well-ventilated |
| Temperature : 18-30°C;Humidity: 30-70%RH | |
| Power requirements | AC220V ( ±5% ) , 50HZ/60HZ |
| Power consumption | 6,000W |
| Machine dimensions (W x D x H) | 3,730 × 1,970 x 1,500 mm |
| Machine weight | 1,000 Kg |
| Shipping dimensions (W x D x H) | 3,900 x 2,360x 1,850 mm |
| Shipping weight | 1,440kg |
| Optional Visual Positioning System available | Cannon-style Visual Position System |
| RIP software | Standard: RIIN |
| Optional : PrintFactory / Uitraprint /Onyx / PhotoPrint | |
| Print resolution | 720 x 900 dpi; 720× 1200 dpi; 720×1800 dpi |
| Computer requirements | Operating system: Windows 7/10(64-bit);Procssor: Intel Core i7;Memory: 16 GB; Hard-disk: 1TB or above SSD drive; USB3.0port. |
