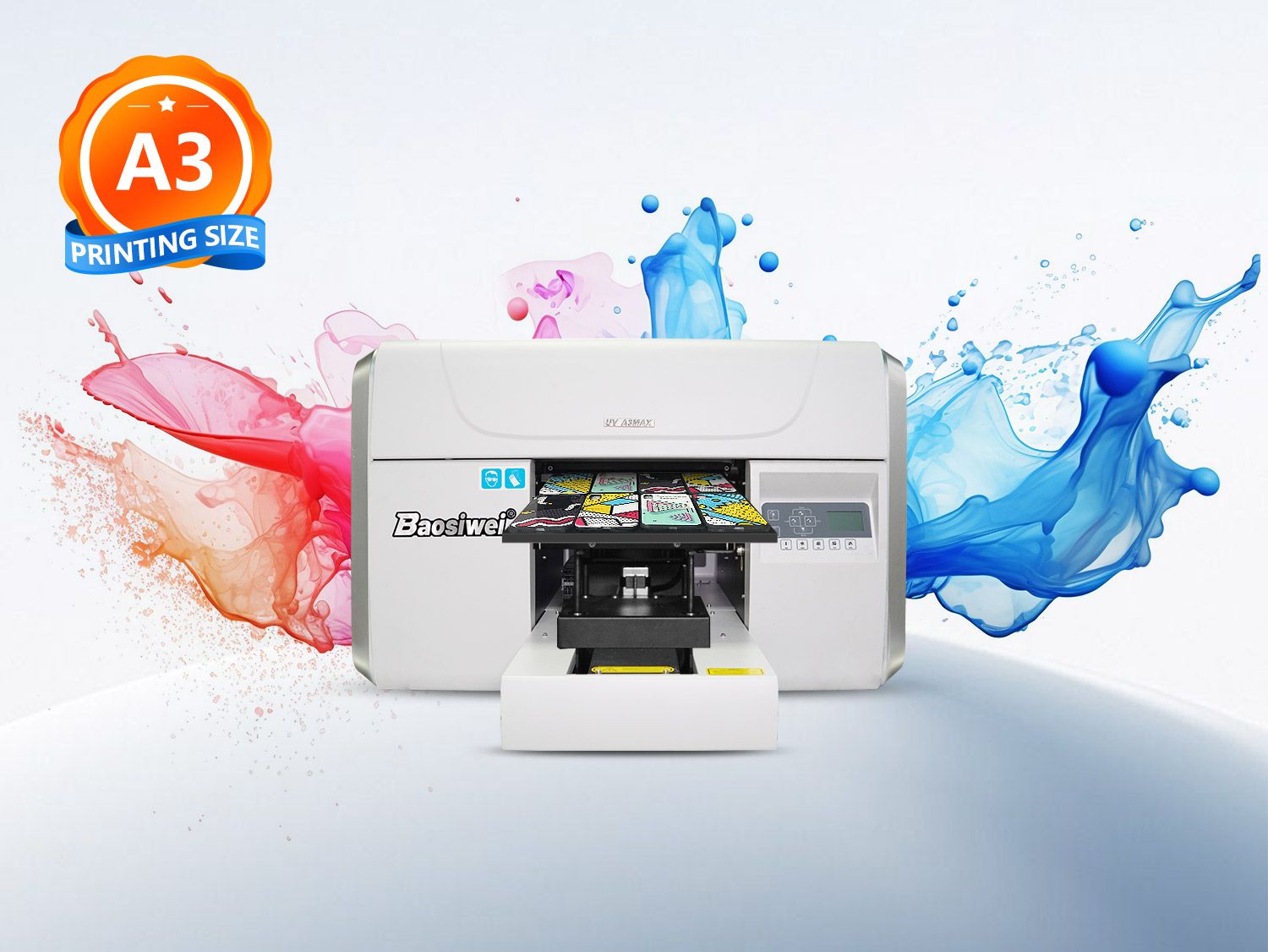

Baosiwei A3 Multifunctional UV Flatbed Printer Small
- Category: UV Flatbed Printer
- SKU: A3 UV Flatbed Printer
- Print Width: 297mm×420mm
- Application Materials: Glass, Crystal, Board Vinyl, PVCAcrylic, PETSynthetic Leather, etc.
- Multiple ink configurations to suit your quality, finishing, and special effects needs.
- Intelligent ink supply system with ink low-level alarm to protect print heads.
- Aluminum alloy honeycomb vacuum bed for high precision printing on any substrate.
- Automatic nozzle maintenance mechanism to reduce nozzle clog.
- Intiutive RIP software with automatic color management system.
Product Details
Payment & Shipping Terms
Personalized Phone Case Printing with A3 UV Printer – Stunning marble-textured phone cases printed with Baosiwei A3 UV flatbed printer, offering unique and durable designs

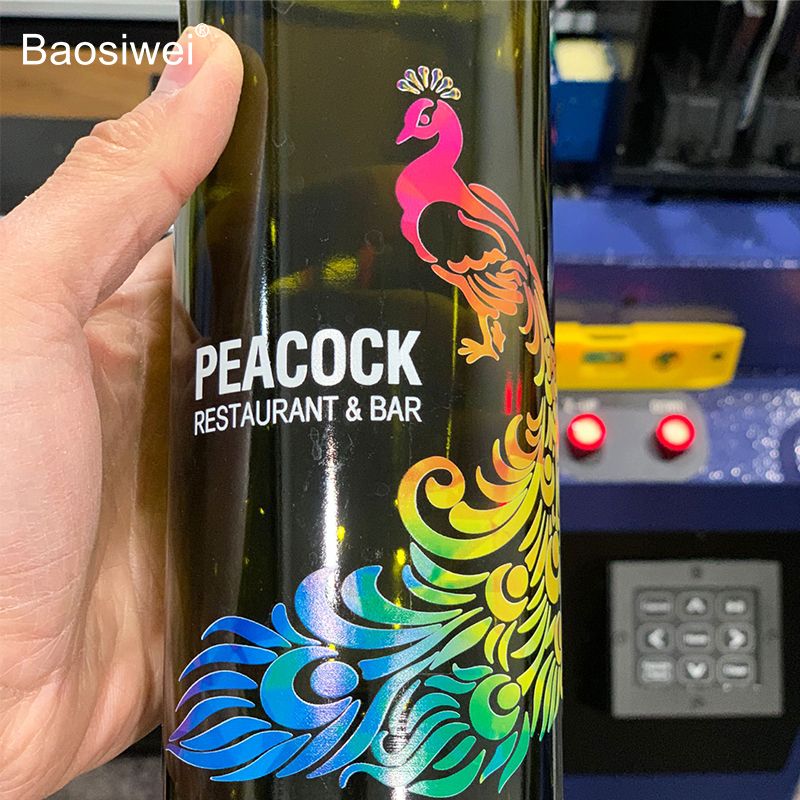

Customized Glass Bottle Printing by A3 UV Printer – High-quality UV-printed glass bottle with vibrant color and precise detailing

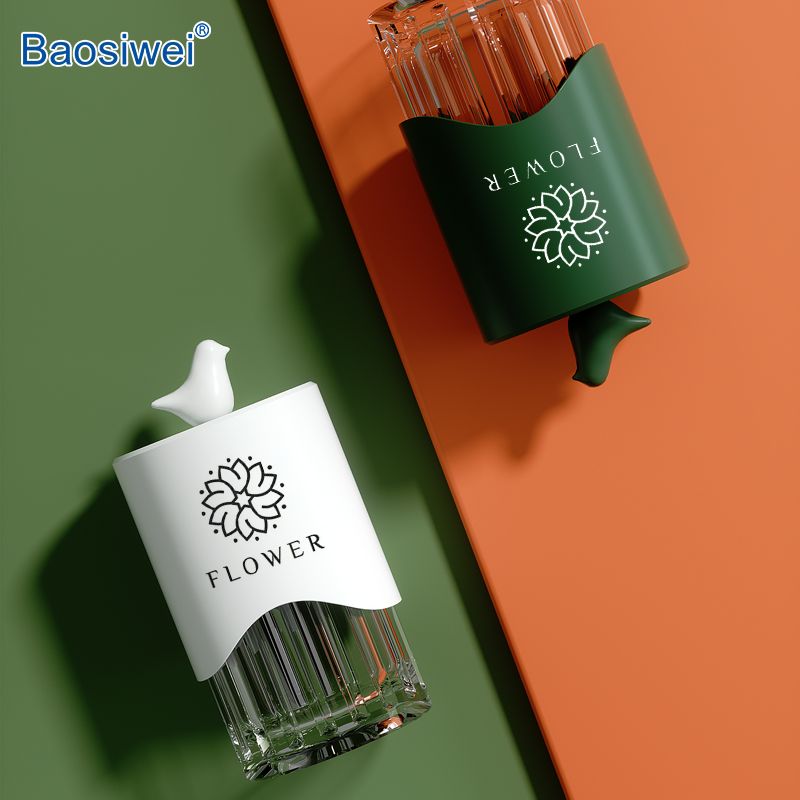

Custom Perfume Bottle Printing with A3 UV Printer – Premium UV-printed perfume bottles with intricate designs, perfect for luxury brand customization Revolutionary A3 Multi-Function UV Flatbed Printer
Transforming Your Printing Experience
Versatile Printing Mastery
Print on virtually any surface—including rigid sheets, rolls, and cylindrical objects—with one compact machine. Whether it’s wood, metal, acrylic, plastic, or glass, unleash your creative possibilities with ease.
Customizable Ink Configurations
Supports multiple ink layouts, including white, color, and varnish. Easily achieve embossed textures, glossy finishes, and eye-catching special effects tailored to your design needs.
Smart Ink Management System
Equipped with automatic ink circulation and low-ink alerts, this system helps protect the printhead, reduce downtime, and ensure smooth, uninterrupted printing.
Precision Vacuum Bed Platform
The honeycomb-style aluminum alloy vacuum bed ensures excellent material stability and accurate alignment, resulting in cleaner, more consistent output across various substrates.
Automated Printhead Maintenance
Includes an automatic nozzle cleaning system to prevent clogging and extend printhead life, allowing for worry-free operation over extended use.
User-Friendly RIP Software
Easy-to-use interface with built-in automatic color management ensures vibrant and accurate color performance for every job.
Free Printed Sample Available
We invite you to request a complimentary print sample using your own materials.
Contact us at [email protected] to experience the detail and quality firsthand.
Related Products
Baosiwei New Generation Visual Positioning UV Flatbed Printer
Baosiwei New Generation Visual Positioning UV Flatbed-Printer 1.6mx1.2m
Baosiwei 2513 UV Flatbed Printer | Large Format Industrial Digital Printing Machine 2.5m x 1.3m
Baosiwei 6090 UV Flatbed Printer – High-Precision & Industrial-Grade Printing for Small Items & Signage Specifications
| Model | A3 UV Flatbed Printer | Printing speed | 0.28 -3 ㎡/h |
| Print head | Licensed Epson i3200(8)-U1HD | Printing area | Maximum 297 x 420 mm |
| Numbers of print heads | 1 | ||
| Printing materials | Glass, board, signage vinyl, crystal, PVC, arcylic, leather plastic, PE'T and much more on cylindrical or flat objects. | ||
| Material height | Maximum 97 mm | ||
| Ink type | UV ink | ||
| Ink configuration | 4 colors(CMYK)/WH+4 color / WH+4 color+varnish / 4 color+WH+4 colors | ||
| Ink capacity | 250ml/ bottle | ||
| Ink consumption | 1.3 ml (A4 size printing,100% monochrome) | ||
| Connectivity | Gigabit | ||
| Environment | Temperature:20-28℃;Humidity: 38-65% | ||
| Power requirements | AC 220V±10%,50HZ/60HZ | Power consumption | 140W |
| Machine dimensions(WxDxH) | 1,000 × 902 × 592 mm | Shipping dimensions(WxDxH) | 1,110 × 1,010 × 760 mm |
| Machine weight | 78kg | Shipping weight | 110 Kg |
| RIP software | Standard: Future RlP Optional: MainTOP | ||
| Supported file formats | TIFF/JPEG/EPS/PDF/PNG | ||
| Computer requirements | Processor: Intel Core i7; Memory: 16 GB; Hard-disk: 1TB or above SSD drive, Operating system: Windows 7 orWindows 10(64-bit): Gigabit | ||
| Media width | 30-250 mm | ||
| Media inner diametel | 65 mm | ||
| Cylindrical object diameter | 25-65 mm | ||
| Cylindrical object length | 20-230 mm | ||
