Baosiwei JW-2513 UV Flatbed Printer Configuration Analysis: Industrial-Grade Precision and Multi-Material Performance

In the era of industrial digital printing, large-format UV flatbed printers are no longer evaluated solely by their printing area. Today, the focus is on stability, precision, material versatility, and operational efficiency. The Baosiwei JW-2513 UV flatbed printer was designed to address these demands, providing industrial-grade performance for sectors such as home decoration, glass and metal processing, signage, and custom furniture. With a large-format platform of 2500 × 1250 mm, this printer delivers high-precision, high-speed output while ensuring long-term reliability and minimal downtime.

This article presents an in-depth analysis of the JW-2513 UV flatbed printer, covering its structural design, printhead system, vacuum platform, ink delivery and maintenance systems, multi-material compatibility, and real-world industrial applications. By understanding its configuration, businesses can make informed decisions for production efficiency and quality.

01 | Industrial-Grade Structural Design: The Foundation of Precision

At the core of JW-2513 UV flatbed printer’s performance is its full-steel welded frame, which provides rigidity and reduces vibrations during high-speed operation. The stability of the machine ensures that every ink droplet lands precisely on the intended point, a critical factor for high-resolution printing.

Key hardware highlights include:

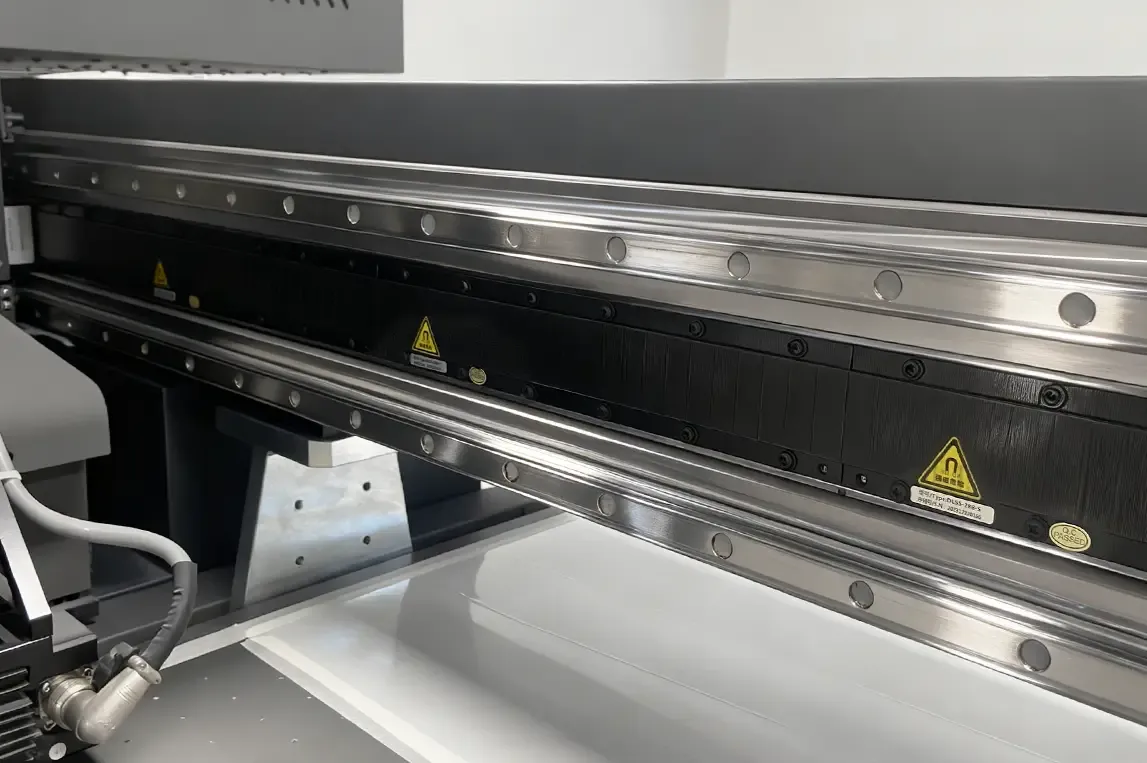

THK linear guide rails (Japan): High durability and precision, ensuring smooth motion even under heavy loads.

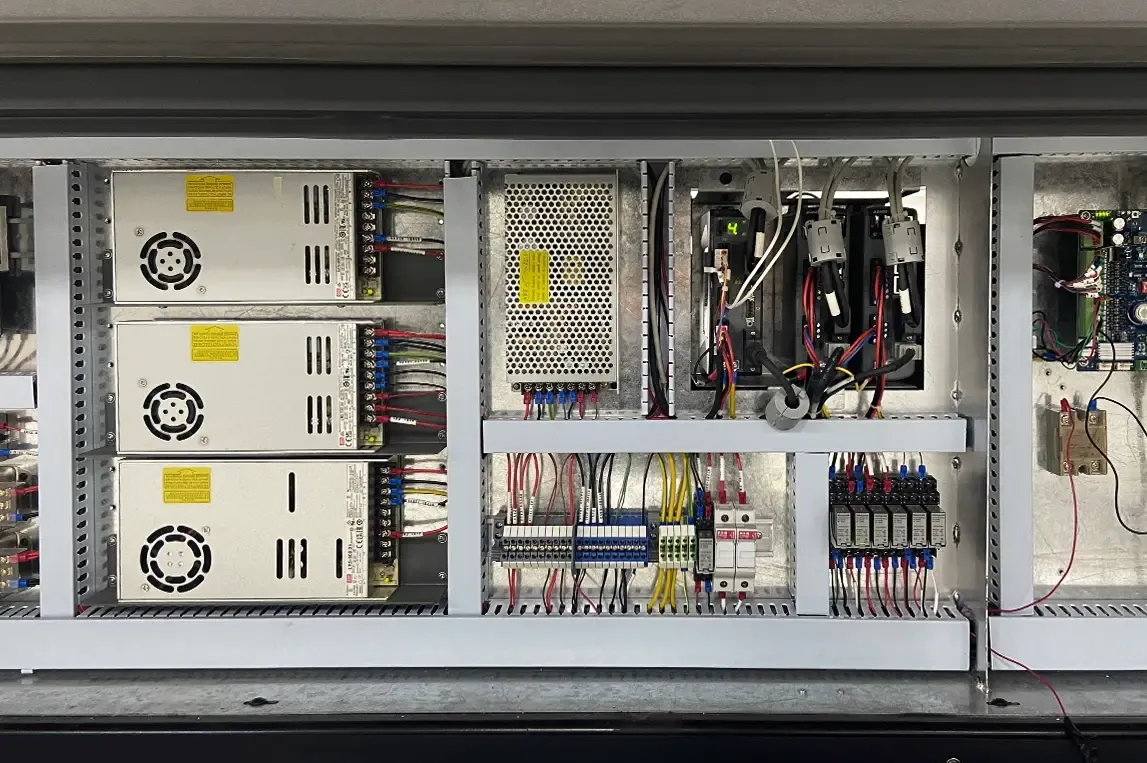

Industrial servo motors with integrated controllers: Deliver accurate X/Y axis movement for high-resolution output.

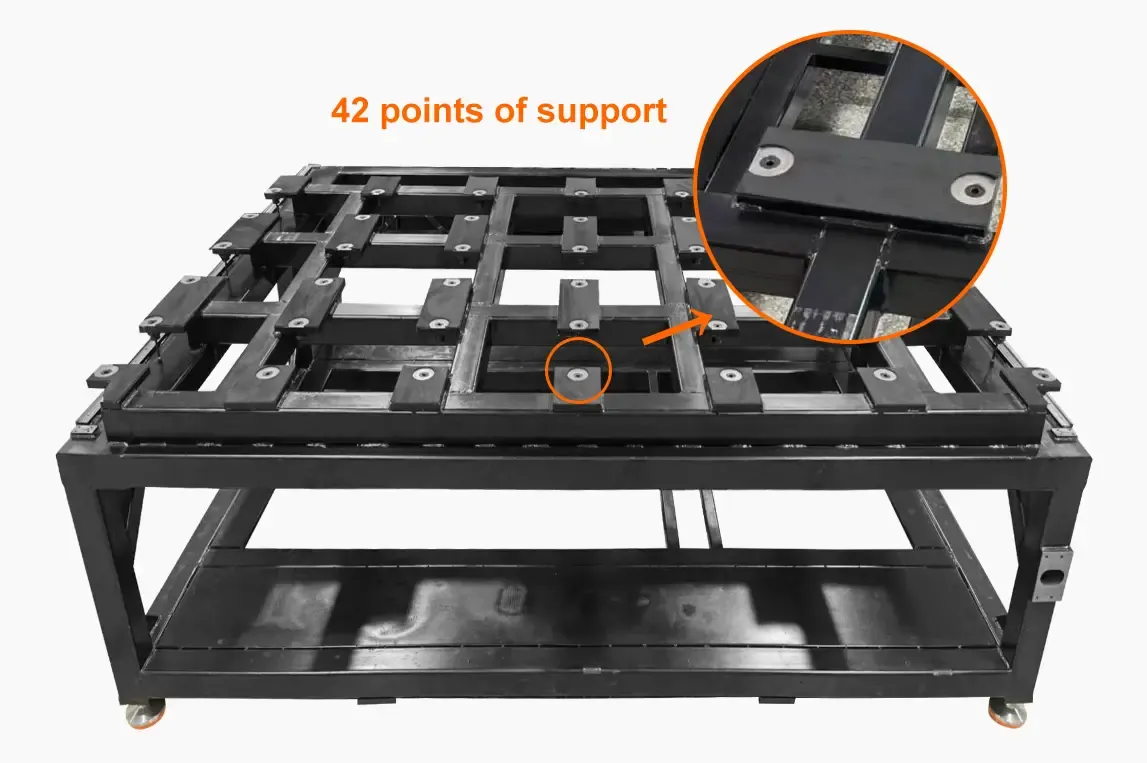

42 platform support points: Compared to competitors, JW-2513 UV flatbed printer has 10+ additional supports to reduce platform deflection and vibration.

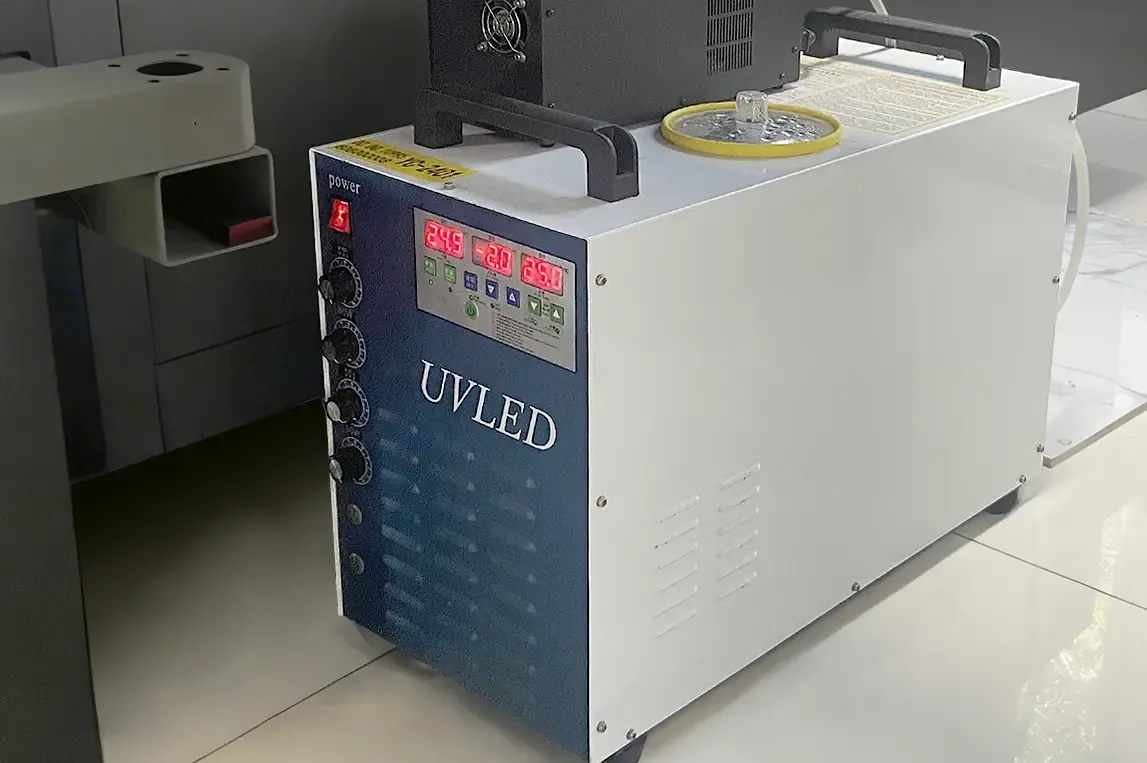

Industrial-grade UV curing system: Low energy consumption, long lifespan, and minimal heat emission.

Durable cable drag chain system: Reduces cable wear and extends operational life during continuous production.

The combination of these features allows the JW-2513 UV flatbed printer to maintain stable printing quality over long production cycles, setting it apart from standard or semi-professional machines.

02 | Ricoh G5/G6 Printhead Array: Balancing Speed, Accuracy, and Longevity

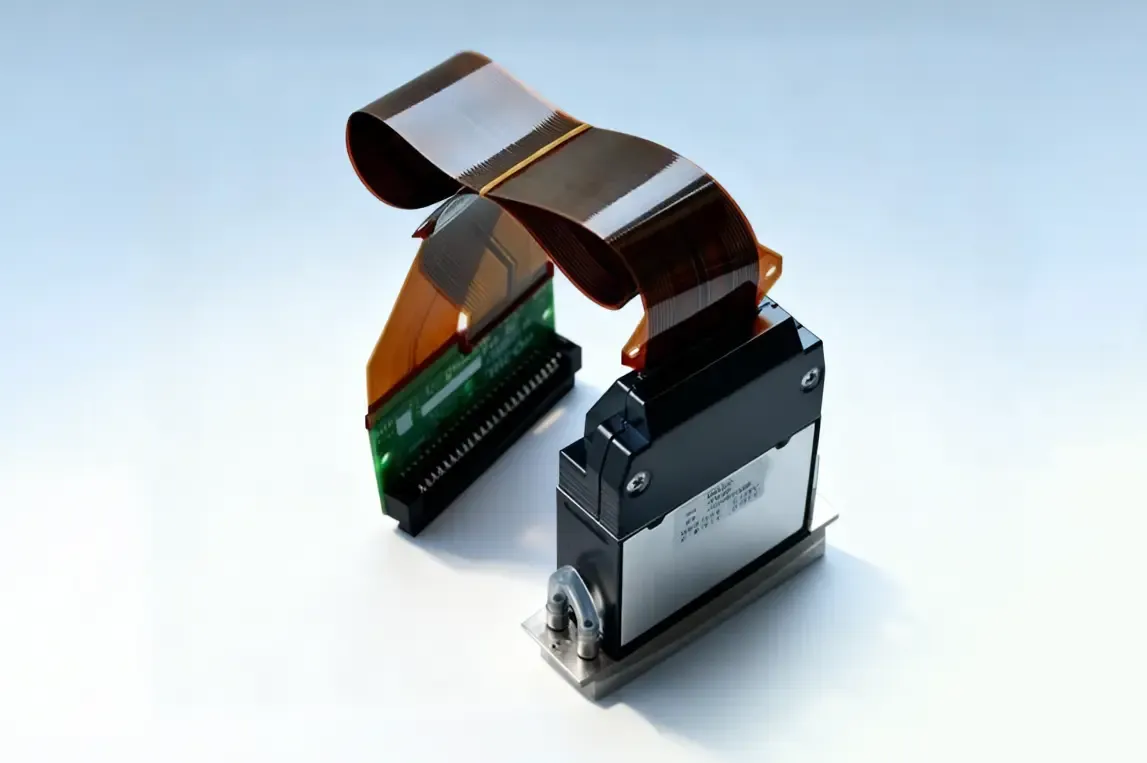

The Ricoh G5/G6 industrial printheads are the heart of the JW-2513 UV flatbed printer. Depending on production needs, the printer can be configured with 2–8 G5/G6 heads. For white ink applications, configurations start at 3 heads to enable CMYK + white + varnish simultaneous printing.

Performance specifications:

• Maximum resolution: 1440 dpi
• Maximum speed: 48 m²/h
• Longevity: 24–36 months under industrial usage conditions (source: Ricoh Industrial Inkjet Printhead Technical Guide)
• Low clogging rates, high reliability for continuous production
• Supports multi-channel output: color, white, and varnish

This configuration allows the JW-2513 to achieve 3D embossed effects and realistic textures for wood grain, stone patterns, and decorative surfaces. It is especially suitable for high-value applications such as custom furniture panels, decorative metal sheets, and signage.

03 | Hard Oxidized Platform + Four-Zone Vacuum: Ensuring Material Stability

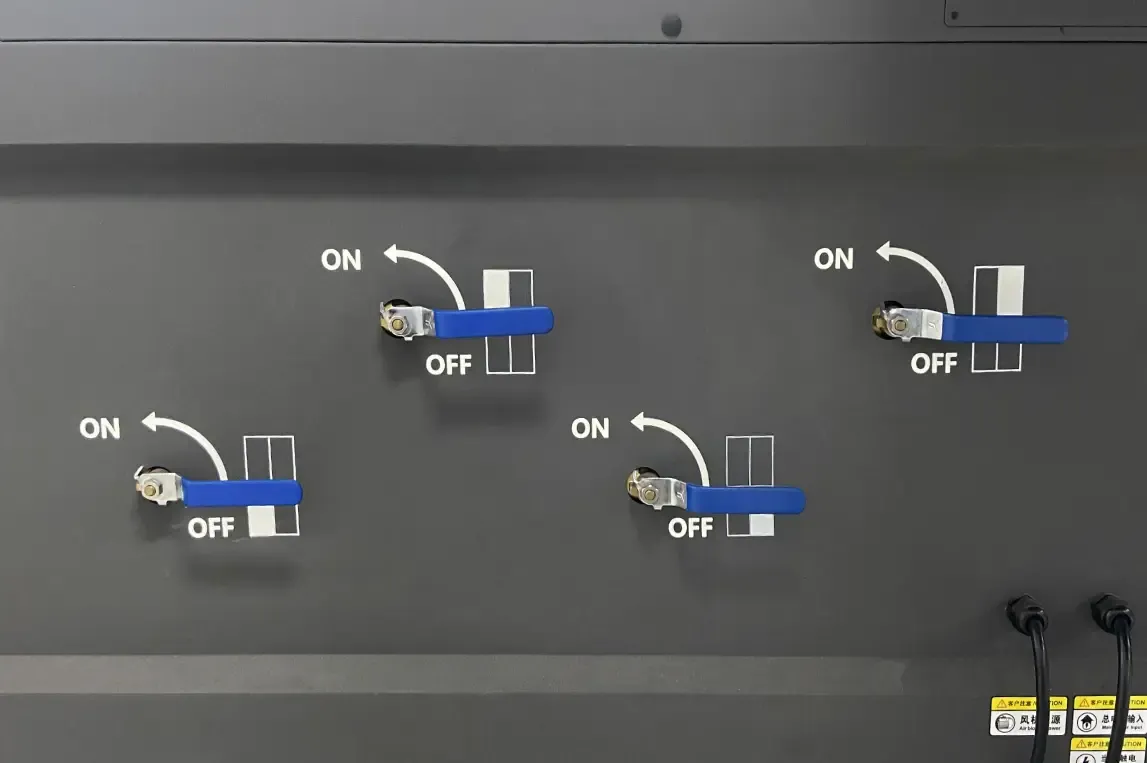

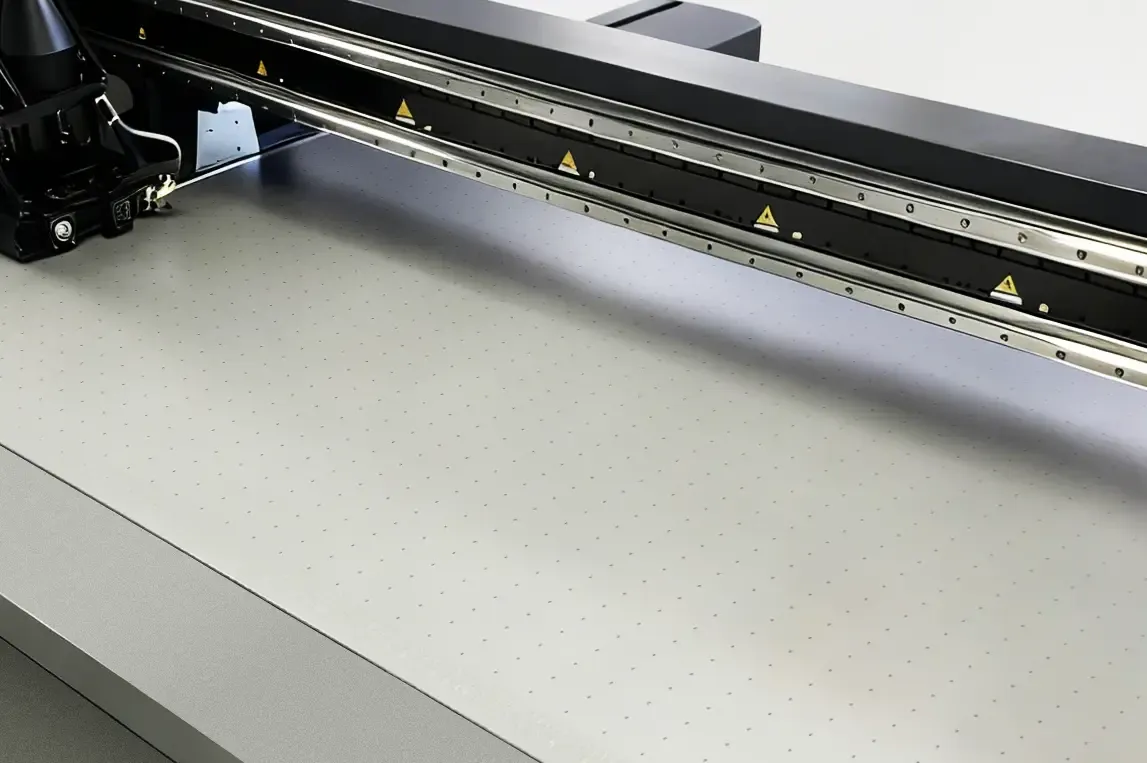

One of the key challenges in large-format printing is preventing material movement during high-speed operation. The JW-2513 UV flatbed printer addresses this through a hard anodized vacuum platform with four independently controlled zones.

• Vacuum zones can be adjusted according to material size and thickness.
• Materials supported: hard boards (metal, wood, acrylic), soft boards (PVC sheets), and small objects.
• Platform durability: Hard anodized surface resists scratches and wear, maintaining consistent flatness for precise printing.
• 42 support points stabilize even heavy or thick materials.

This system ensures that thin or flexible materials remain flat, while thick or heavy boards do not shift, achieving consistent, high-quality results across varied production scenarios.

04 | Dual Negative Pressure Ink System + White Ink Circulation

Continuous production demands a stable ink supply, particularly for white ink which is prone to sedimentation. The JW-2513 UV flatbed printer employs:

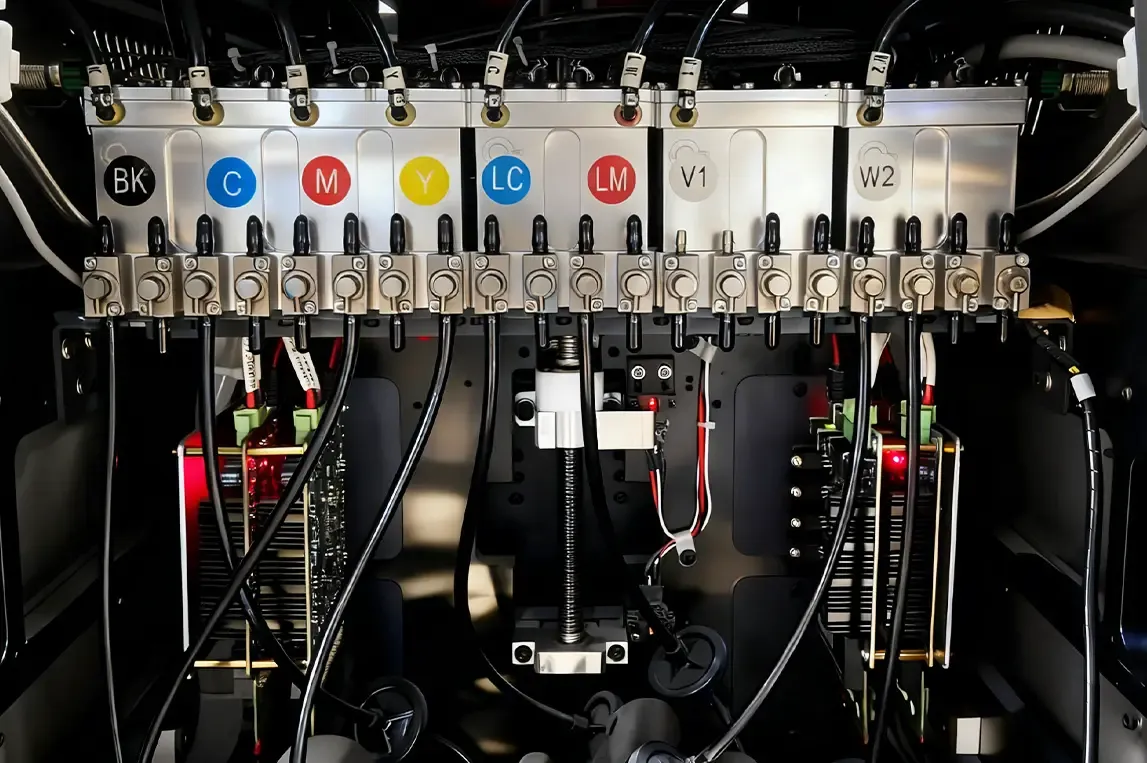

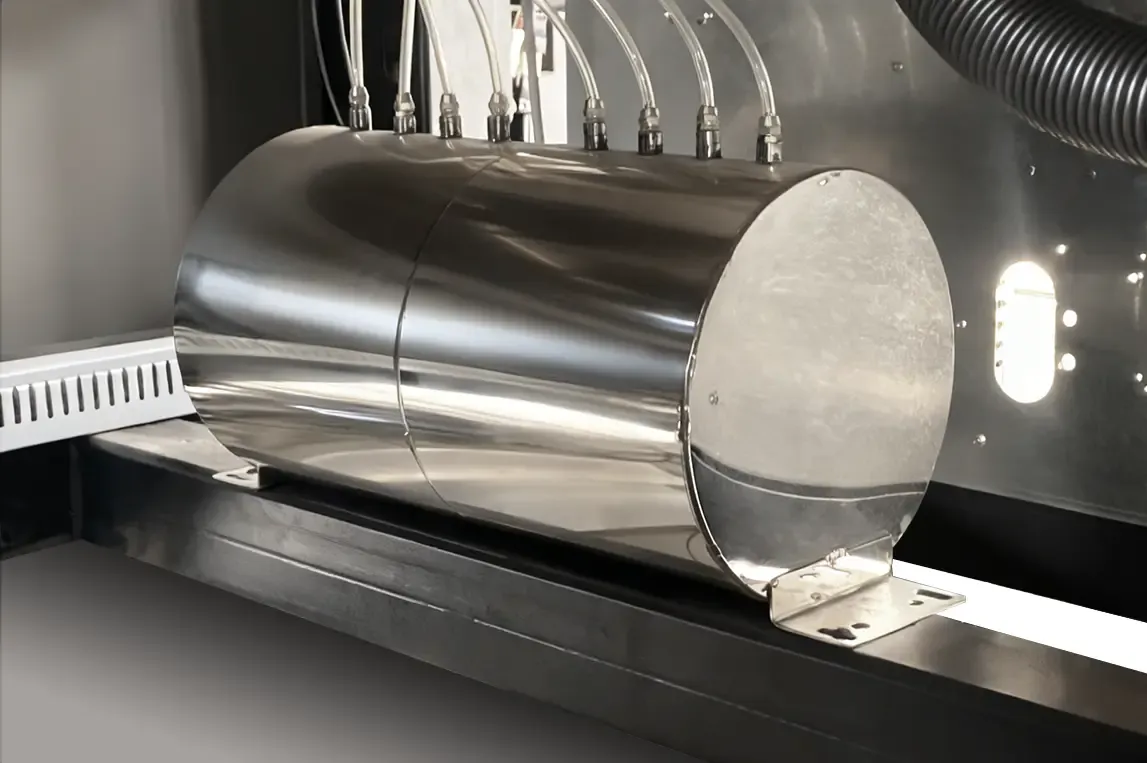

Dual negative pressure ink system: Maintains consistent pressure for all ink channels, preventing gaps or streaks during high-speed output.

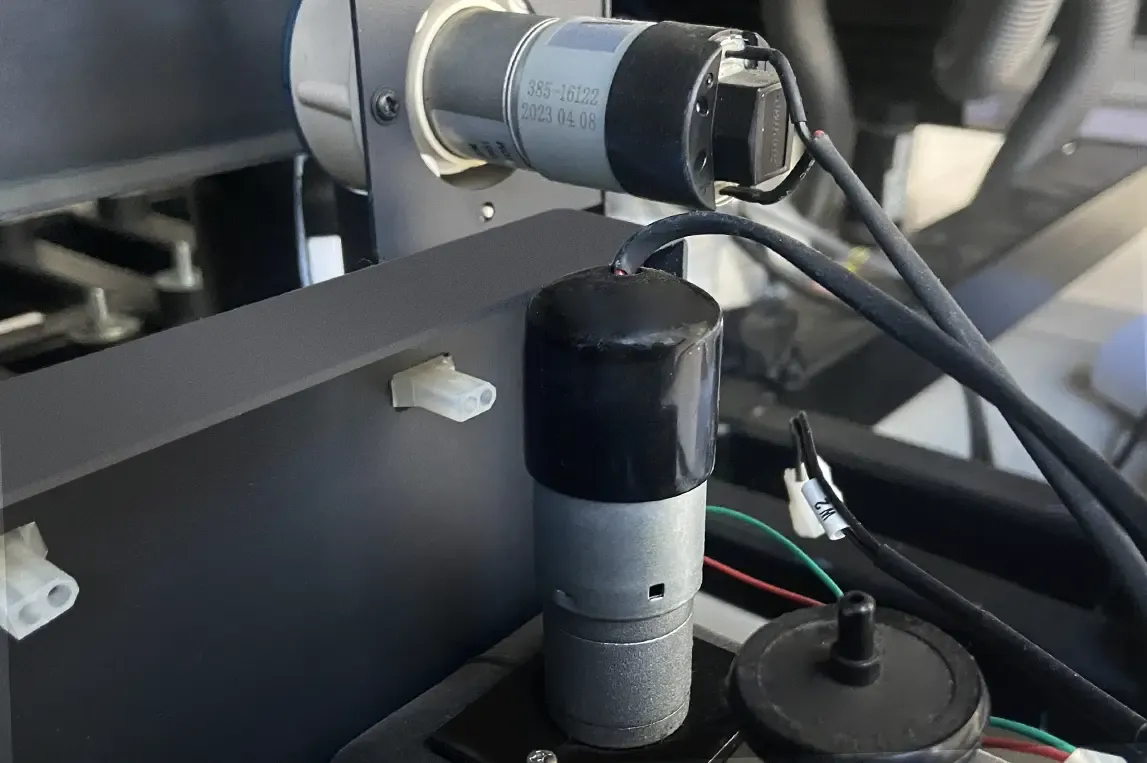

White ink circulation and automatic stirring: Prevents pigment settlement, ensuring consistent coverage and brightness.

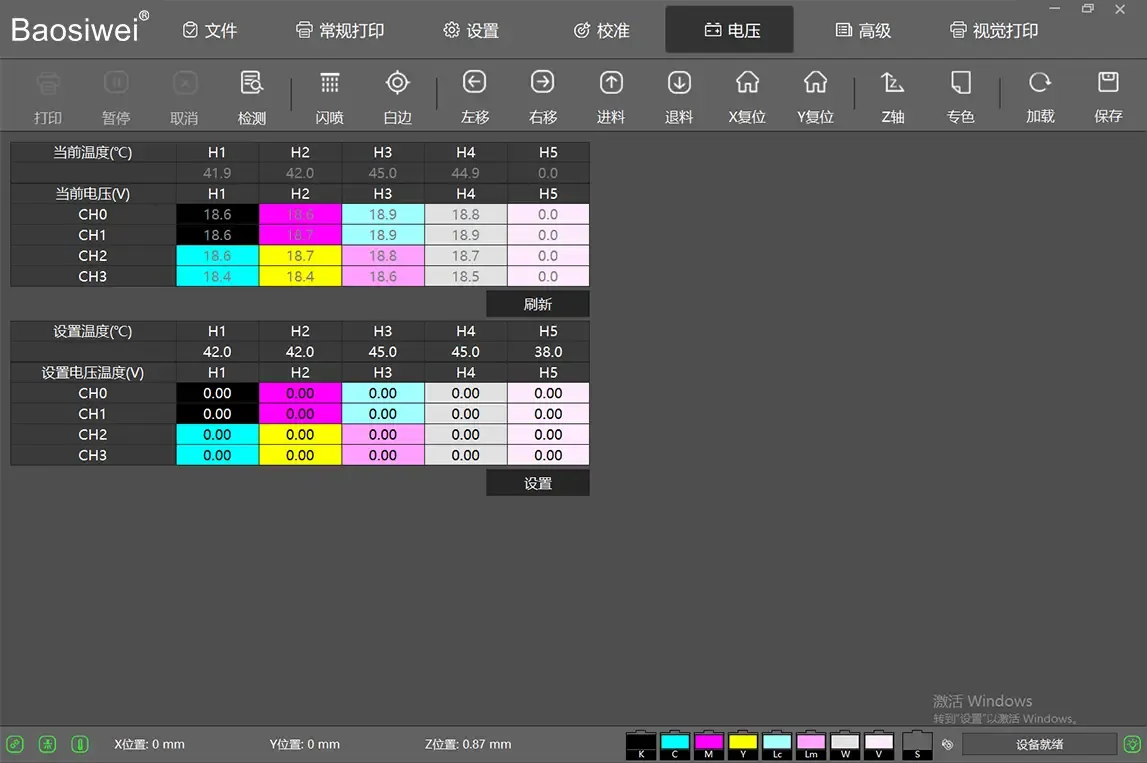

Intelligent printhead temperature control: Keeps the working temperature ≤ 55°C, avoiding color deviation caused by overheating.

These features allow manufacturers to maintain consistent color output during long production cycles, especially for glass, acrylic, and metal materials that require high ink adhesion.

05 | Collision Protection

JW-2513 UV flatbed printer minimizes downtime and maintenance costs with a suite of automated features:

• Intelligent anti-collision: Detects warped or raised boards and stops the printhead to prevent damage.
• Ink suction and humidity preservation: Protects the printhead when idle.

These systems extend printhead life, reduce operational risk, and are particularly beneficial in high-volume industrial environments.

06 | Multi-Material Compatibility: One Machine for Many Industries

Thanks to its precise ink placement, strong vacuum platform, and industrial-grade printheads, the JW-2513 UV flatbed printer can print on a wide range of materials:

• Wood panels – furniture, cabinets, decorative panels
• Metal sheets – aluminum, iron, sheet metal
• Glass – decorative glass, partitions, back-painted glass
• Acrylic – lightboxes, display signage
• PVC sheets – advertising boards, construction materials
• Ceramic tiles – decorative walls, art tiles
• Foam boards – POP displays
• Decorative panels & construction boards – wood/stone textures

Material thickness range: 100–450 mm
Platform width customization: 2.5–5 meters

This flexibility allows businesses to consolidate production and handle diverse projects without needing multiple machines.

If you'd like to learn how to select a UV printer that meets your production needs, check out our previous blog posts:（ 2025 UV Printer Selection & Pricing Guide）

07 | Practical Application Case: Vietnamese Furniture Manufacturer: (

A Vietnamese home decor panel manufacturer previously relied on screen printing for cabinet door textures, facing long template changeovers and limited small-batch customization.

After implementing the JW-2513 (3 white + color + varnish):

• Production increase: 150 panels/day → 240 panels/day (+60%)
• Order flexibility: On-demand pattern switching without creating new templates
• Consistency improvement: Wood grain embossing completed in one pass, with reduced batch color variation

Currently, the factory has migrated 80% of production to digital printing and plans to add a second JW-2513 UV flatbed printer for further expansion.

08 | Industry Data & References

1. Market growth for UV flatbed printers

According to FESPA Print Census Report 2024, global UV flatbed printer adoption in home decor and construction materials is growing at 17.4% per year, the fastest-growing segment among flatbed printing applications.
(Source: FESPA Print Census Report 2024)

2. Ricoh G5 industrial printhead lifespan

As noted in the Ricoh Industrial Inkjet Printhead Technical Guide, G5 printheads last 24–36 months under industrial conditions, far exceeding typical consumer-level heads.
(Source: Ricoh Industrial Inkjet Printhead Technical Guide)

Conclusion: Industrial Efficiency Meets Multi-Material Versatility

The Baosiwei JW-2513 UV flatbed printer delivers high stability, precision, and long-term reliability through its industrial-grade architecture, Ricoh G5 printhead array, hard anodized vacuum platform, intelligent ink system, and automated maintenance features.

From decorative panels, glass, metal sheets, to PVC and ceramic tiles, JW-2513 UV flatbed printer handles diverse material types with high accuracy and repeatability. Businesses in signage, custom furniture, glass and metal processing, or construction materials can benefit from faster production, reduced downtime, consistent output, and expanded application versatility.

For companies seeking industrial-grade digital printing solutions that combine efficiency, quality, and flexibility, the JW-2513 UV flatbed printer represents a strategic investment in productivity and competitive advantage.
