Baosiwei High Speed Processed UV Hybrid Printer
- Category: Hybrid Printer
- SKU: JW-1904 UV
- Print Width: 1800mm
- Application Materials: Sheet /roll materials dual-use,suitable for the leather industry,home furnishing industry, advertisingindustry, etc.
1.9m Printing Width – Supports large-format UV printing for a wide range of materials.
4pcs i3200 Printheads – Delivers high-resolution prints with fine details and vibrant colors.
Mesh Belt Hybrid System – Ensures smooth and accurate material feeding, reducing wrinkles and misalignment.
High-Speed Performance – Optimized for efficient production, combining speed and quality in one machine.
Versatile Printing Applications – Handles rigid and flexible materials, including leather, acrylic, metal, glass, wood, PET film, and textiles.
Product Details
Payment & Shipping Terms
Baosiwei UV Hybrid Printer – Textured 3D Embossed Art Printing for Home Decor

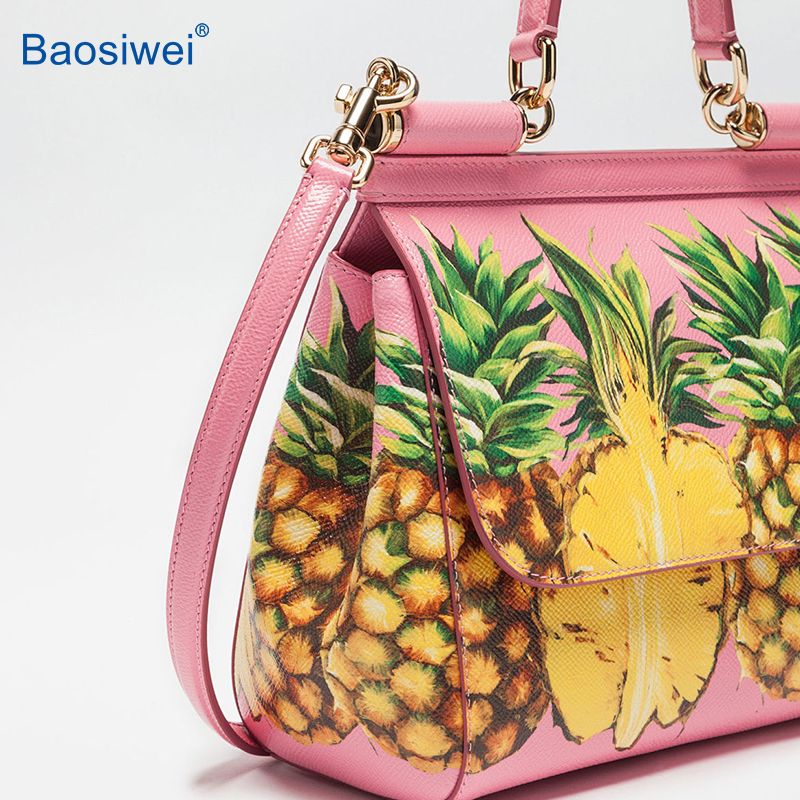

Baosiwei UV Hybrid Printer – High-Quality Custom Leather Bag Printing with Vivid Colors

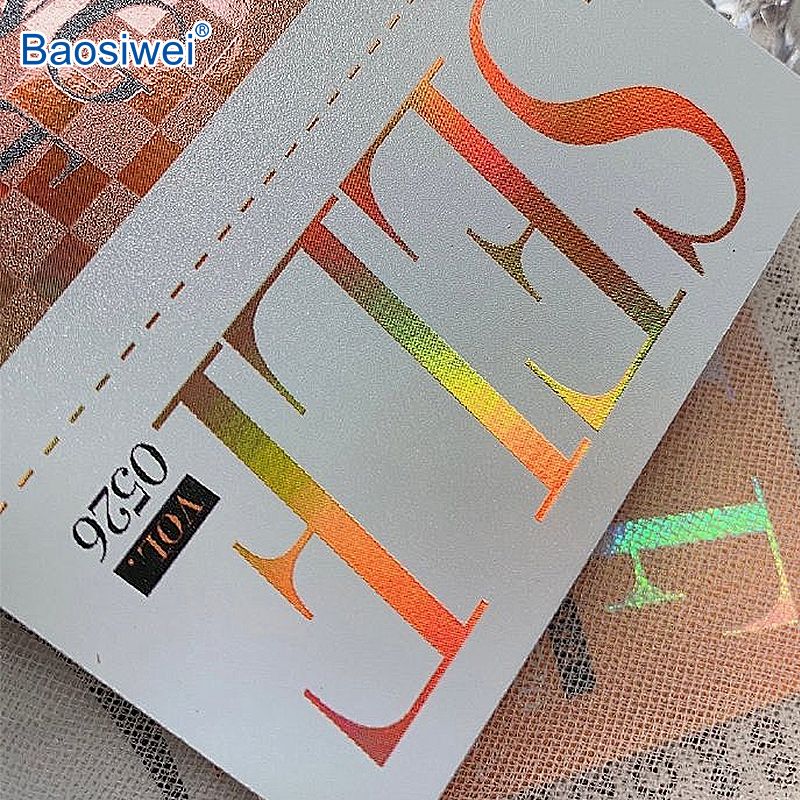

Baosiwei UV Hybrid Printer – Metallic Foil Stamping & Embossed Printing for Luxury Packaging & Labels Baosiwei UV Mesh Belt Hybrid Printer – 1.9m / 4 i3200-U1 Printheads
This model is equipped with 4 Epson i3200-U1 industrial printheads, supporting a printing width of 1.8 meters and a maximum output speed of 46㎡/h.
It is suitable for small to medium-sized UV production, handling both rigid boards and flexible media.
Core Specifications
• 4 Epson i3200-U1 printheads
• Print width: 1800mm
• Production speed: up to 46㎡/h
• Available ink configurations:
– CMYK + White + Varnish
– CMYK + White
– CMYK only
– White + CMYK + Varnish
• Mesh belt with high-strength transmission and precise stepping
• Imported linear guide rail for stable and low-noise carriage movement
• Supports roll and rigid material printing with consistent accuracy
Platform and Feeding
The printer uses a vacuum platform combined with a reinforced mesh belt system. The platform includes a 40cm vacuum zone to improve material flatness. This ensures more stable feeding of thin, soft, or larger format media, minimizing deviation and wrinkling.
Application Fields
• Acrylic sheets
• Foam boards, PVC, KT board
• PET film, vinyl, soft films
• Short-run packaging, signage, display boards
Sample Printing Available
For printed samples on your required substrate, please contact [email protected].
Related Products
Baosiwei UV Hybrid Leather Printing Printer 1.9m
Baosiwei 3D Embossed oil painting UV Hybrid Printer 1.9m
Baosiwei Eco Solvent Hybrid Printer high speed leather production
Baosiwei Small Format UV Hybrid Printer 80cm
Baosiwei water-based Latex Digital Printer 1.9m Specifications
| Model | JW-1904UV |
| Print head | Licensed Epson i3200-U1 |
| Numbers of print heads | 4 |
| Printing speed | 6 pass: 46㎡/h |
| 8 pass: 36㎡/h | |
| Color configuration | 4 Colors + W(C/MM/Y/K),multiple |
| color combinations available: | |
| CMYK + white + varnish, | |
| white + white + CMYK + CMYK, | |
| white + CMYK + CMYK + varnish | |
| CMYK + white + CMYK, | |
| CMYK + white, all CMYK | |
| Print width | Maximum printing width 1800mm |
| Print height | Adjustable height 2-30mm |
| Media type | Flatbed and roll printing hybrid, suitable for leather industry, home decorationindustry,advertising industry |
| Media specifications | Maximum media width 1900mm |
| Media transfer | Industrial grade cloth collection and feeding system |
| Heating and drying | Equipped with infrared + fan |
| Data interface | Ethernet interface |
| RIP software | PhotoPRINT, Maintop, RIlN, PrintFactory |
| Temperature and Humidity | Temperature:15-28°C Humidity: 35-80% RH |
| Power | >20A；4.0KW |
| Power supply | AC220V/110V(±5%),50Hz/60Hz |
| Dimensions(LxWxH) | 3470 x1700 x1560mm |
| Weight | 620Kg |
| Computer requirements | Processor: i7, Memory: 16G, Hard disk: 1T or above solid state drive, 64-bit |
| Windows 7/10 Operating System |
