Major Upgrade: Baosiwei's Short-Run Folding Carton Sheet Production Solution Reaches a New Level

As global e-commerce and product customization continue to expand, the packaging industry is rapidly shifting from high-volume standardized production to short-run, multi-SKU, and fast-turnaround manufacturing. More brands are introducing different packaging designs for various sales channels, regional markets, and promotional campaigns, placing greater demands on the production flexibility of folding carton manufacturers.

For packaging factories, conventional offset printing is becoming increasingly inefficient for orders of fewer than 500 sheets. High plate-making costs, lengthy job changeovers, and minimum order quantity requirements often make short-run jobs difficult to produce profitably.

With nearly 30 years of experience in digital printing technology, Baosiwei has continuously improved its equipment based on real production feedback from packaging manufacturers. The latest 24-head coated paper digital printer is another milestone in this development journey—from the original roll-to-roll printing solution, to roll-to-sheet printing with inline cutting, and now to a fully integrated automatic production line. Every upgrade has been driven by practical manufacturing needs, continuously improving machine configuration, process integration, and production efficiency.

1. Upgrade Journey: From Roll-to-Roll Printing to an Integrated Automatic Production Line

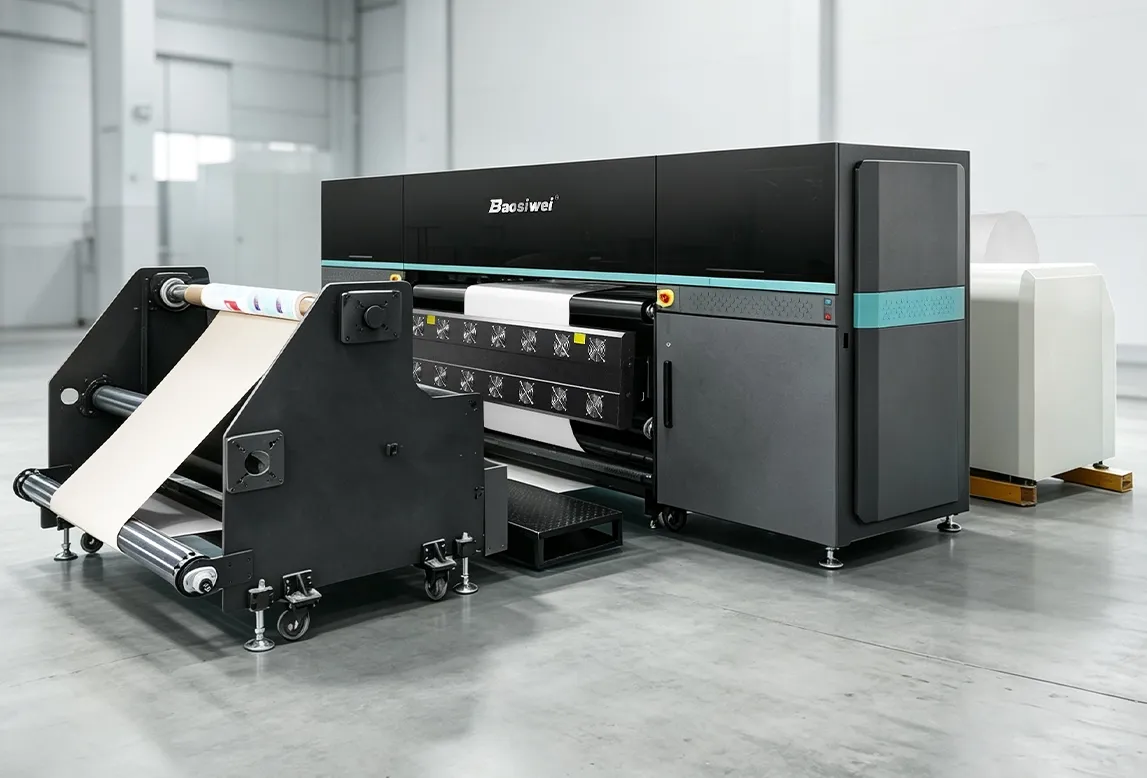

First Upgrade – The Roll-to-Roll Printing Era

The first generation enabled continuous printing on coated paper rolls while supporting a maximum printing width of 1.83 meters, overcoming many of the size limitations associated with traditional offset printing for large-format folding cartons. Continuous roll printing also improved production efficiency while reducing manufacturing costs for oversized carton applications.

However, lamination and sheet cutting still required separate downstream equipment. Semi-finished materials had to be repeatedly rewound, transported, and processed between different machines, increasing labor requirements while also raising the risk of material damage and making short-run reprints or replenishment orders less convenient.

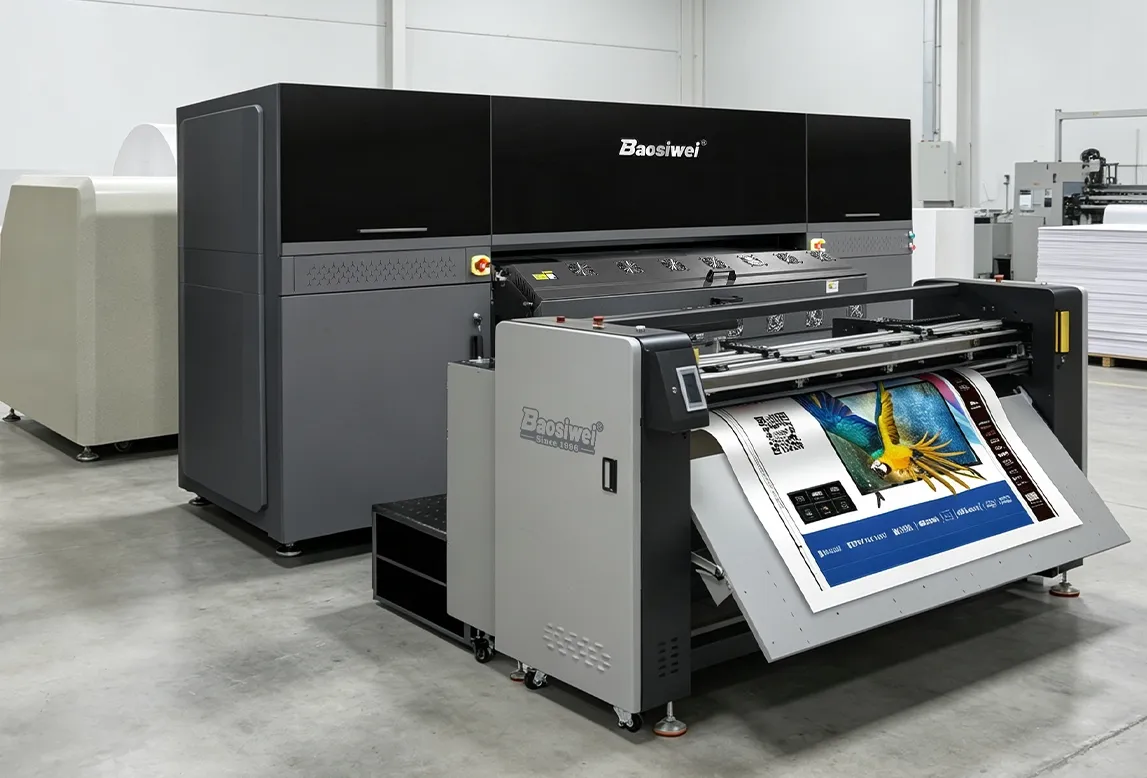

Second Upgrade – Roll-to-Sheet Printing

As Baosiwei continued working closely with packaging manufacturers and collecting production feedback, the system was further upgraded with an automatic sheet-cutting function immediately after printing.

This eliminated the need for separate material handling before cutting, making production more flexible and efficient. The solution is particularly suitable for short-run orders, rapid job changeovers, and repeat production of replenishment orders, while reducing intermediate handling processes and improving overall production efficiency.

Third Upgrade – Fully Integrated Automatic Production Line (Latest Generation)

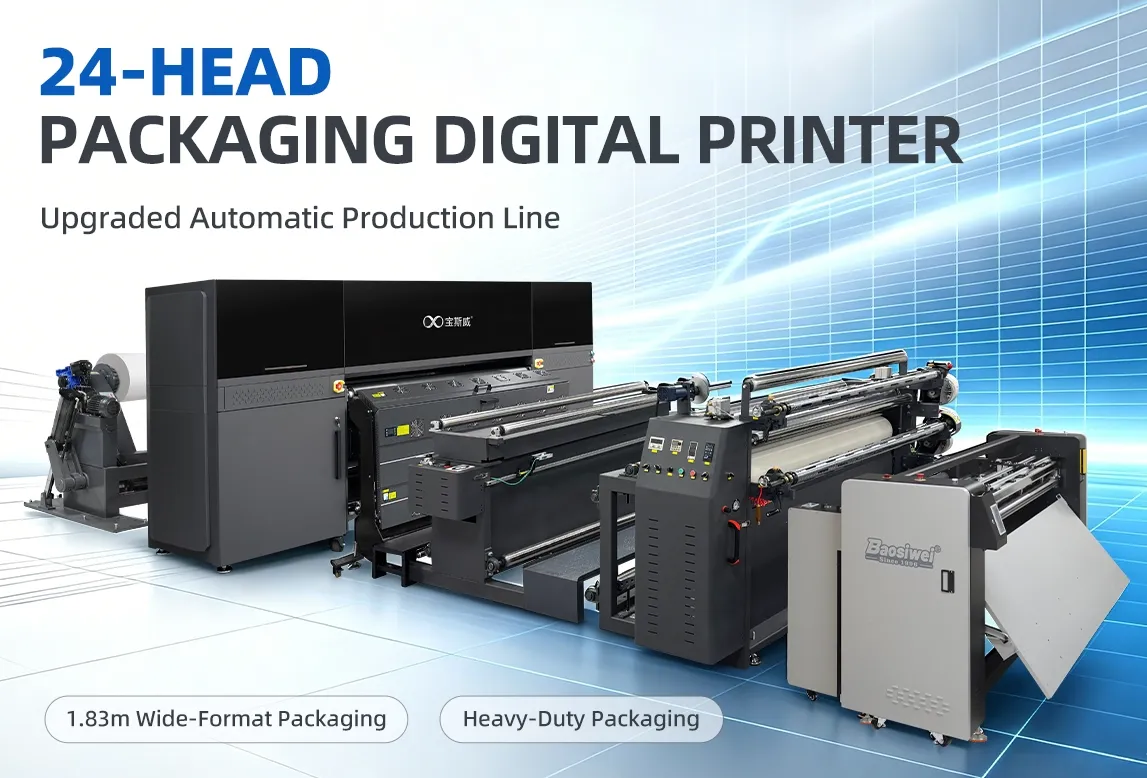

The latest upgrade connects the shaftless unwinding system, 24-head digital printing system, lamination system, and XY cutting system into one fully integrated production line, enabling continuous automated production from paper rolls to finished folding carton sheets.

The most significant improvement is the integration of the lamination process directly into the digital printing and cutting workflow. Rather than operating as separate production stages, printing, lamination, and cutting are completed within one continuous process.

This is more than simply combining multiple functions into one machine. It minimizes manual intervention, reduces production errors, improves operational efficiency, lowers the risk of machine downtime, and transforms digital printing from multiple independent operations into a continuous automated manufacturing process.

Flexible Configuration Options

To meet different production capacity and print quality requirements, the printer is available in 8-head, 16-head, and 24-head configurations. From sample production and short-run jobs to factory-scale manufacturing, users can upgrade capacity step by step without making a large upfront investment.

All configurations support a maximum printing width of 1.83 meters, helping manufacturers overcome the size limitations of conventional offset printing when producing large-format folding cartons.

2. Integrated Production Line: Continuous Production from Paper Rolls to Finished Folding Carton Sheets

Compared with traditional segmented production, Baosiwei's latest upgrade integrates the unwinding, digital printing, lamination, and cutting systems into one fully automatic continuous production line. This significantly reduces waiting time between processes, material handling, and manual intervention, enabling a seamless workflow from paper rolls to finished folding carton sheets in a single pass.

① Shaftless Unwinding System

The shaftless unwinding system supports paper rolls weighing up to 2 tons and accommodates both 3-inch and 6-inch cores, allowing operators to switch rolls within just a few minutes without forklifts, gantry cranes, or multiple workers.

For different production requirements, the machine also offers a standard solution for rolls under 200 kg as well as an optional shaft-type automatic unwinding system, providing greater flexibility for various production environments.

② 24-Head Digital Printing System

At the heart of the production line is the 24-head digital printing system, equipped with 24 Epson i3200-A1 industrial printheads. The system delivers both high-speed production and outstanding print quality, meeting the demands of short-run packaging while maintaining stable performance throughout continuous operation.

③ Integrated Lamination System (Key Upgrade)

One of the most significant improvements in this upgrade is the integration of the lamination process directly into the printing and cutting workflow.

The laminating unit features a heavy-duty structure weighing approximately 1.5 tons, ensuring long-term mechanical stability during continuous industrial production.

Combined with a high-precision automatic web guiding system, the machine keeps the paper running accurately without deviation, ensuring precise alignment between the film and printed sheets. Uniform lamination pressure produces smooth finished surfaces without wrinkles or bubbles, while eliminating the need for separate offline lamination.

④ XY Cutting System

The integrated XY cutting system delivers cutting accuracy within ±1 mm, producing consistently sized printed sheets that can be transferred directly to the mounting process for subsequent packaging production.

Workflow Comparison

Traditional Digital Printing Process

Printing → Rewinding → Material Handling → Lamination → Rewinding → Material Handling → Cutting →

Material Handling

(Multiple stops, alignment adjustments, and manual operations)

Baosiwei Integrated Production Line

Paper Feeding → Digital Printing → Automatic Web Guiding → Lamination → XY Cutting → Finished Folding Carton Sheets

(Continuous automated production in a single workflow)

3. Automation Upgrade: Lower Labor Requirements with Single-Operator Production

Automation is one of the most significant improvements introduced in this latest upgrade.

By integrating multiple production stages into one continuous workflow, the production line greatly reduces manual intervention while improving production consistency and operational efficiency.

Key advantages include:

• Fully automatic production from paper feeding to finished sheet cutting, with minimal manual intervention.

• The entire production line can be operated by one to two operators.

• Automatic web guiding ensures stable and accurate material feeding throughout production.

• Printing and cutting are synchronized automatically, eliminating secondary material handling.

• Cutting accuracy of ±1 mm ensures smooth integration with downstream production processes.


For manufacturers producing large-format folding cartons, home appliance packaging, short-run packaging, and multi-SKU orders, this integrated solution helps reduce labor costs while simplifying daily production management.

4. Conclusion

In industrial manufacturing, every unnecessary production step, handling process, or operational delay increases both cost and production risk.

For nearly three decades, Baosiwei has continuously refined its digital printing technology based on real manufacturing requirements. From roll-to-roll printing to roll-to-sheet production, and now to a fully integrated automatic production line, every upgrade has focused on solving practical challenges faced by packaging manufacturers.

The latest 24-head coated paper digital printer represents another major step forward, providing folding carton manufacturers with a more efficient solution for short-run, multi-SKU, and fast-turnaround production through an integrated automatic production line.

If your factory is facing increasing demand for short-run orders, multiple product variations, and faster delivery schedules, feel free to contact the Baosiwei team to learn more about our 24-head coated paper digital printing production line, request sample testing, and explore a complete production solution tailored to your packaging business.
